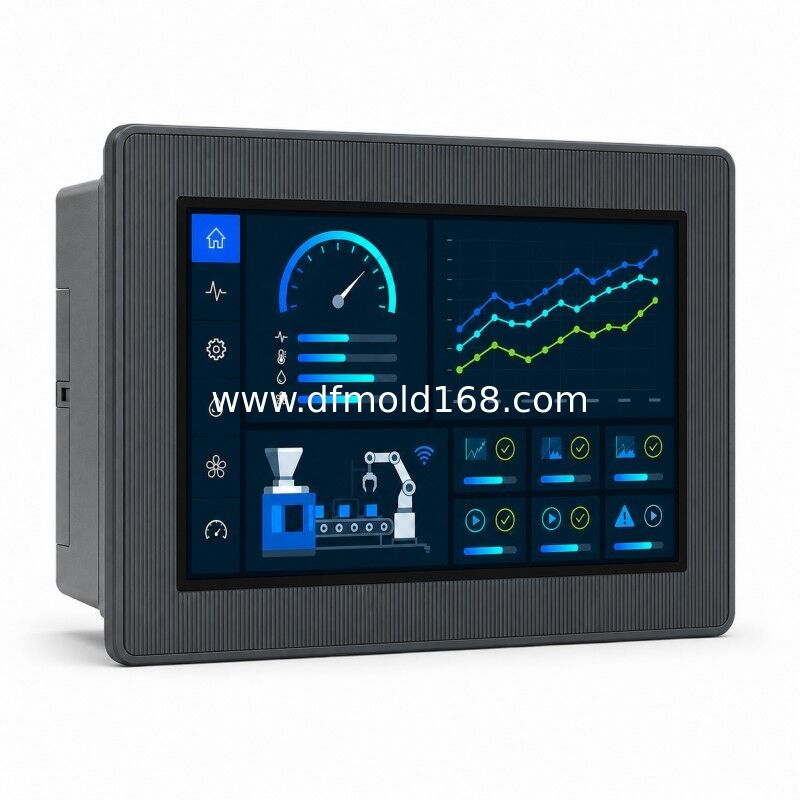

6PPT30.0702-20B Power Panel T30 7 Inch Anthracite HMI

The B&R 6PPT30.0702-20B is a 7.0-inch Power Panel T30 operator terminal with a landscape WVGA 800 x 480 pixels display and analog resistive touch input. It combines a 600 MHz ARM Cortex-A8 processor, 256 MB DRAM and 512 MB onboard flash with two Fast Ethernet ports and two USB 2.0 interfaces.

The B suffix identifies the anthracite gray pinstripe front. It is the dark-front counterpart to 6PPT30.0702-20W and retains the same screen format, panel dimensions and terminal interface architecture.

Key Features

· 7.0-inch WVGA 800 x 480 pixels TFT color display

· Landscape panel format for standard machine controls and retrofit panels

· Analog resistive touch screen suitable for gloved operation

· Dual 10/100 Mbit/s Ethernet ports with integrated switch

· Integrated VNC client, web browser and service page

· IP65 front protection and wide -20 to 60°C operating range

Typical Applications

· Packaging and assembly machines

· Anthracite-front control cabinets

· VNC operator terminals

· Web visualization stations

· Dual Ethernet retrofit projects

Compatibility Note

This T30 model is an HMI terminal, not a standalone PLC. Confirm the exact order number, panel cutout, screen orientation, hardware revision and installed image before replacement.

FAQ

Q: Is this Power Panel a standalone PLC?

A: No. It is a terminal-design HMI used as a VNC or web client. Machine control must be provided by a compatible controller.

Q: What touch technology does it use?

A: It uses an analog resistive touch screen, which is suitable for industrial operation and can generally be used with gloves or a stylus.

Q: How many Ethernet ports are available?

A: Two 10/100 Mbit/s Ethernet ports are provided through an integrated switch for convenient line wiring.

Q: Does it support both VNC and web visualization?

A: Yes. The terminal includes a VNC client, an embedded web browser and an integrated service page.

Q: What does the B suffix identify on this model?

A: It identifies the anthracite gray pinstripe front. The closely related W variant uses an aluminum white pinstripe front.

Q: Can a similar T30 model be used as a direct replacement?

A: Not automatically. Match the full model number, screen format, cutout dimensions, front design, hardware revision and software image before replacement.
