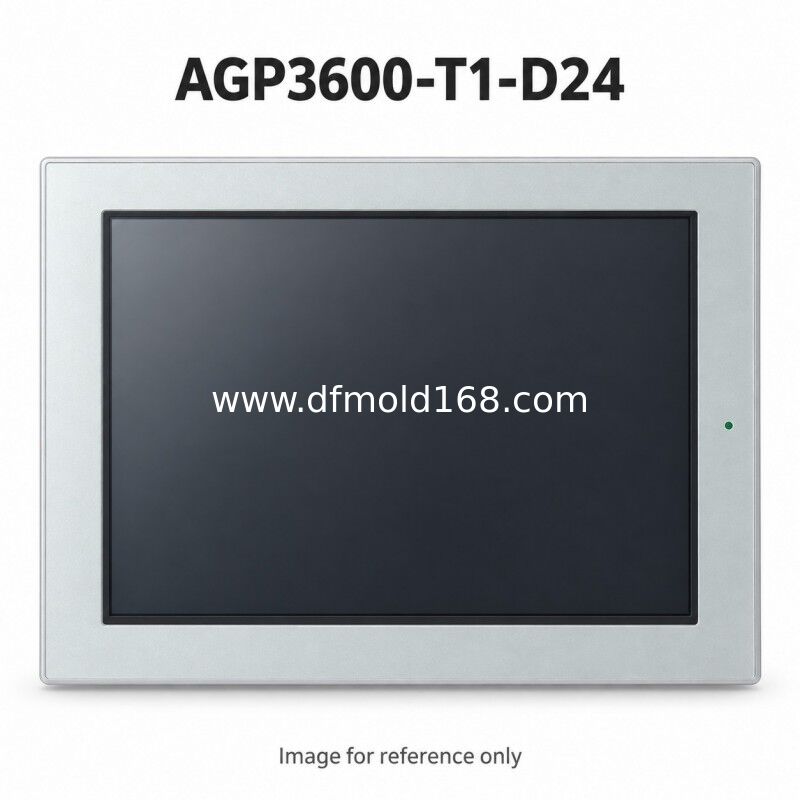

AGP3600-T1-D24 12.1 Inch TFT HMI 800x600 24VDC

Parameters

Product Description

The AGP3600-T1-D24 is a 12.1-inch operator panel with an 800 x 600 TFT color display and 24 V DC input. Its two serial connections, Ethernet port and two USB host ports support several connection arrangements for an existing machine project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3600-T1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is this the DC or AC power version?
   This reference requires 24 V DC. AGP3600-T1-AF is the separate AC reference. Check the nameplate and cabinet supply before ordering; the two versions must not be selected by screen size alone.
2. Does this model include the FN1M control configuration?
   The quoted reference has no FN1M suffix. A unit labelled AGP3600-T1-D24-FN1M is a different configuration. Send the complete installed reference and confirm any required control or expansion functions separately.
3. What mounting dimensions should be checked?
   The nominal panel opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 313 x 239 x 56 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3600-T1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
