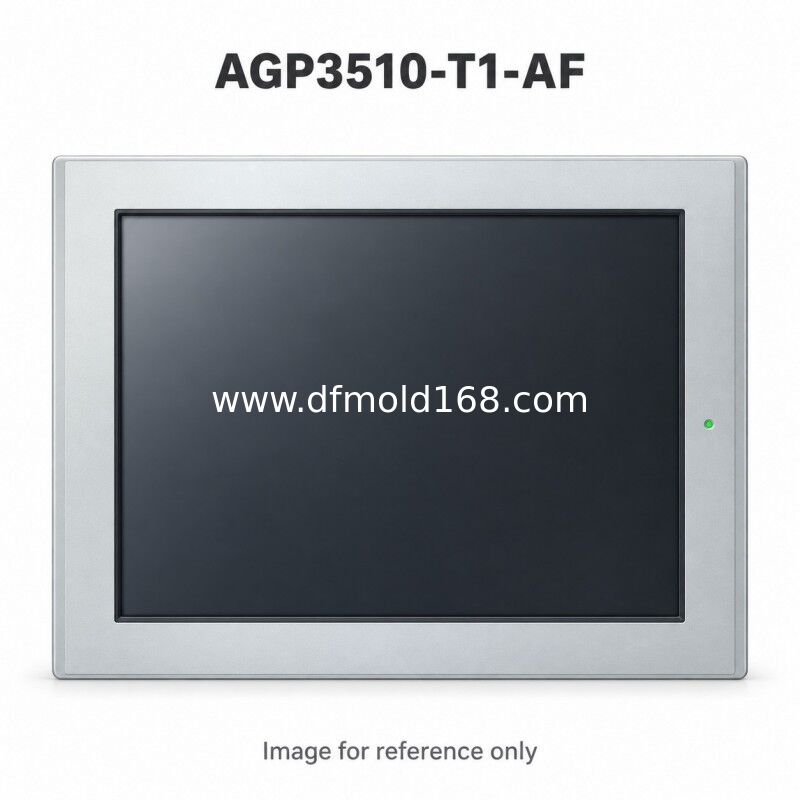

AGP3510-T1-AF 10.4 Inch TFT HMI 800x600 100-240VAC

Parameters

Product Description

The AGP3510-T1-AF combines a 10.4-inch TFT color screen with 800 x 600 resolution and 100 to 240 V AC input. Ethernet, two serial interfaces, two USB host ports and a CompactFlash slot support compatible projects. Its higher pixel count distinguishes it from the 640 x 480 AC reference. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3510-T1-AF with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What distinguishes this reference from AGP3500-T1-AF?
   AGP3510-T1-AF provides 800 x 600 pixels, while AGP3500-T1-AF provides 640 x 480. Both are 10.4-inch AC panels. Match the project target and resolution before treating them as alternatives.
2. Does the AF suffix identify a 24 V DC input?
   No. This reference has a rated input of 100 to 240 V AC. Check the machine supply and terminal wiring against the offered unit label before arranging installation.
3. What mounting dimensions should be checked?
   The nominal panel opening is 259 x 201 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 270.5 x 212.5 x 57 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3510-T1-AF?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
