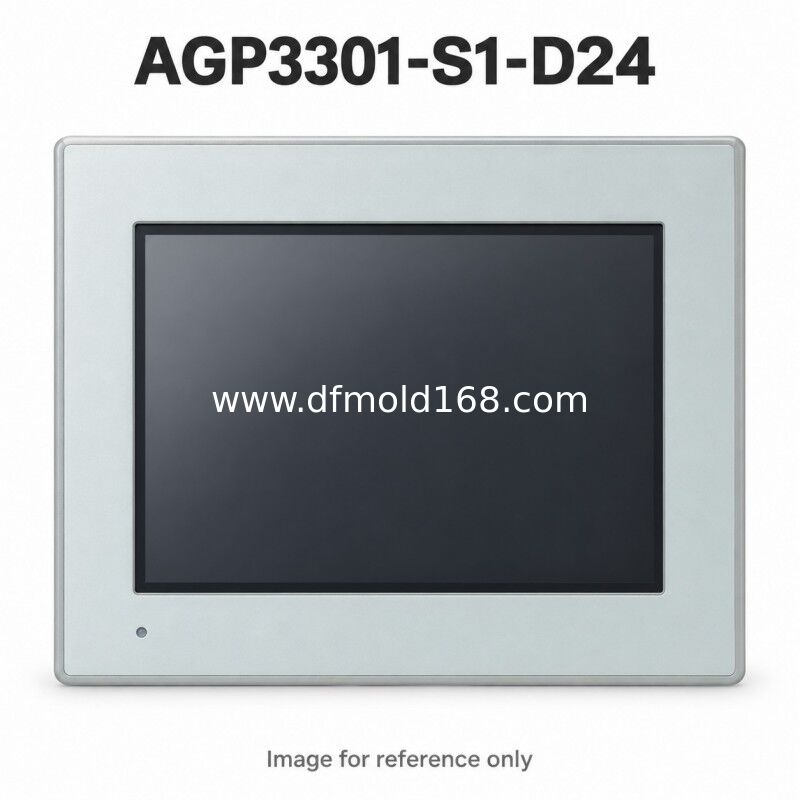

AGP3301-S1-D24 5.7 Inch STN HMI 320x240 24VDC

Parameters

Product Description

The AGP3301-S1-D24 offers a 5.7-inch STN color display with 320 x 240 pixels and 4,096 colors. It is a 24 V DC panel with two serial connections, a USB host port and a CompactFlash slot. This reference does not include a built-in Ethernet interface. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3301-S1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Can this panel connect through a built-in Ethernet port?
   No. AGP3301-S1-D24 does not have built-in Ethernet. If the installed application requires Ethernet, confirm its complete reference and connection arrangement before ordering this model.
2. What distinguishes it from the L1 model?
   The S1 model has an STN color LCD with 4,096 colors. The L1 model is monochrome. Both display technology and the full model number should match the intended replacement requirement.
3. What mounting dimensions should be checked?
   The nominal panel opening is 156.0 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 167.5 x 135 x 59.5 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3301-S1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
