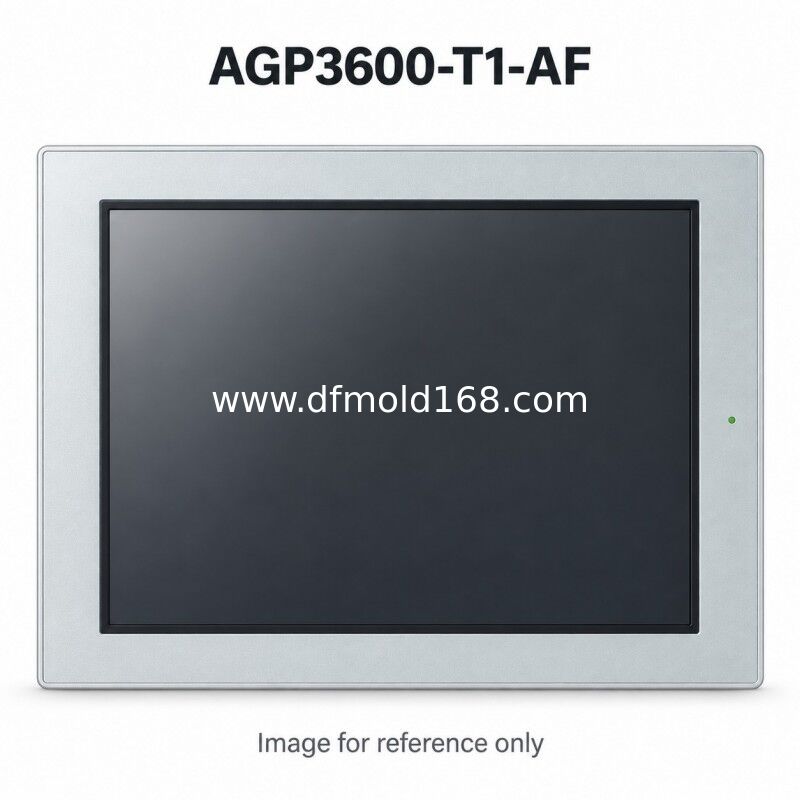

AGP3600-T1-AF 12.1 Inch TFT HMI 800x600 100-240VAC

Parameters

Product Description

The AGP3600-T1-AF is the AC-powered 12.1-inch TFT color panel with 800 x 600 resolution. It has Ethernet, two serial connections, two USB host ports and a CompactFlash slot. The larger display provides space for the screens defined in an existing operator-interface project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3600-T1-AF with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What input supply does the AF version require?
   The rated input is 100 to 240 V AC. The D24 version is a separate 24 V DC reference. Confirm the supply voltage, wiring and full model label when requesting a quotation.
2. Can the backlight type be assumed from the model alone?
   No. Backlight implementation differs by hardware revision. Request the revision label and a powered display inspection. Do not assume that every unit with this reference has the same backlight or maintenance procedure.
3. What mounting dimensions should be checked?
   The nominal panel opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 313 x 239 x 56 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3600-T1-AF?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
