AGP3300-L1-D24 5.7 Inch Mono HMI 320x240 24VDC

Parameters

Product Description

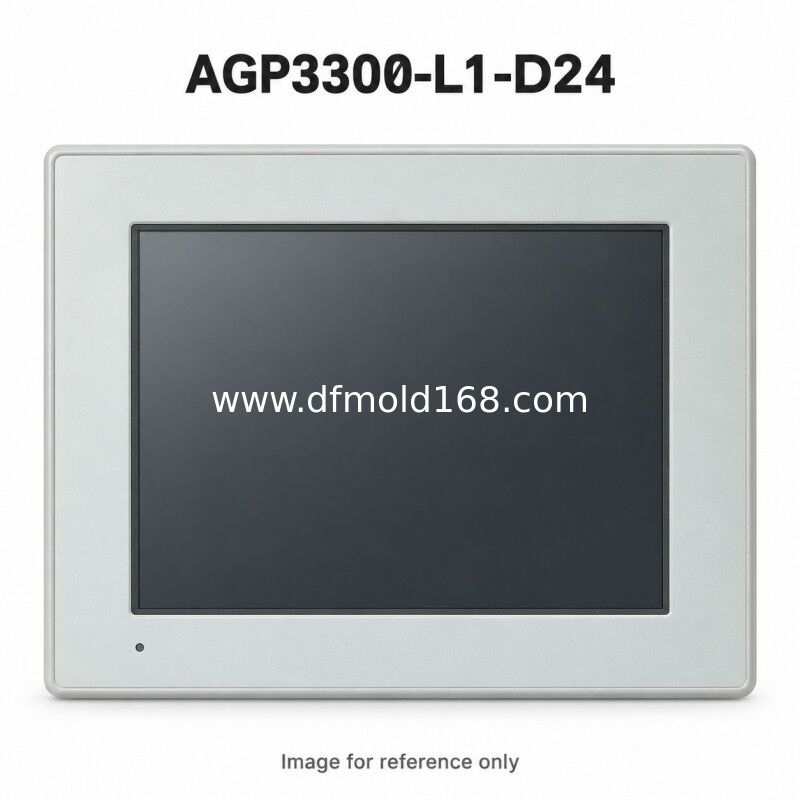

The AGP3300-L1-D24 is a 5.7-inch monochrome HMI with 320 x 240 resolution and analog touch input. Its 24 V DC configuration includes Ethernet, two serial ports, one USB host connection and a CompactFlash slot. The display uses 16 grayscale levels for project screens. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3300-L1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What is the Ethernet difference between 3300L and 3301L?
   AGP3300-L1-D24 includes a 10/100 Mbps Ethernet port. AGP3301-L1-D24 does not. Preserve all digits in the complete reference when checking an installed unit or requesting a quotation.
2. Does the basic model include a FLEX NETWORK controller?
   A control version carries an additional suffix such as FN1M. This listing identifies the base reference without that suffix. Send the complete label and specify any installed expansion or control functions that must be retained.
3. What mounting dimensions should be checked?
   The nominal panel opening is 156.0 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 167.5 x 135 x 59.5 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3300-L1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
