AGP3750-T1-D24 15 Inch TFT HMI 1024x768 24VDC

Parameters

Product Description

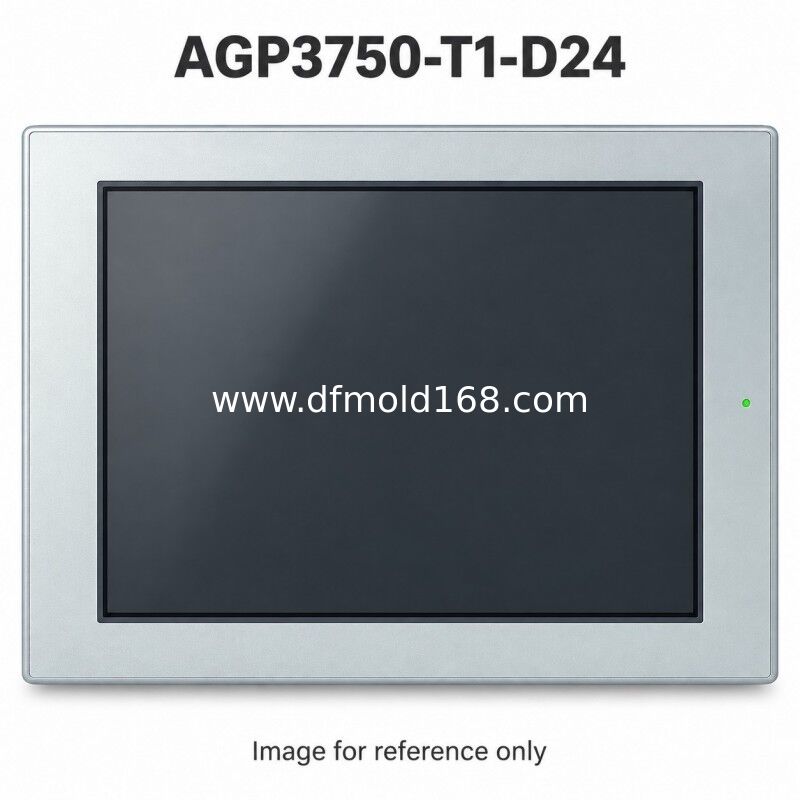

The AGP3750-T1-D24 is a 15-inch TFT color panel with 1024 x 768 resolution and 24 V DC input. It provides Ethernet, two serial ports, two USB host ports and a CompactFlash slot. Its built-in video input is relevant when retaining an existing camera-viewing application. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3750-T1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What video input is built into this model?
   The panel provides an RCA video input supporting NTSC or PAL signals. Verify the camera signal, cabling and project settings. A camera and any external expansion units are included only if expressly listed in the quotation.
2. Is this the 15-inch DC reference?
   Yes. AGP3750-T1-D24 combines a 15-inch 1024 x 768 display with 24 V DC power. Check the full D24 reference because a separate AC model also exists.
3. What mounting dimensions should be checked?
   The nominal panel opening is 383.5 x 282.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 395 x 294 x 60 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3750-T1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
