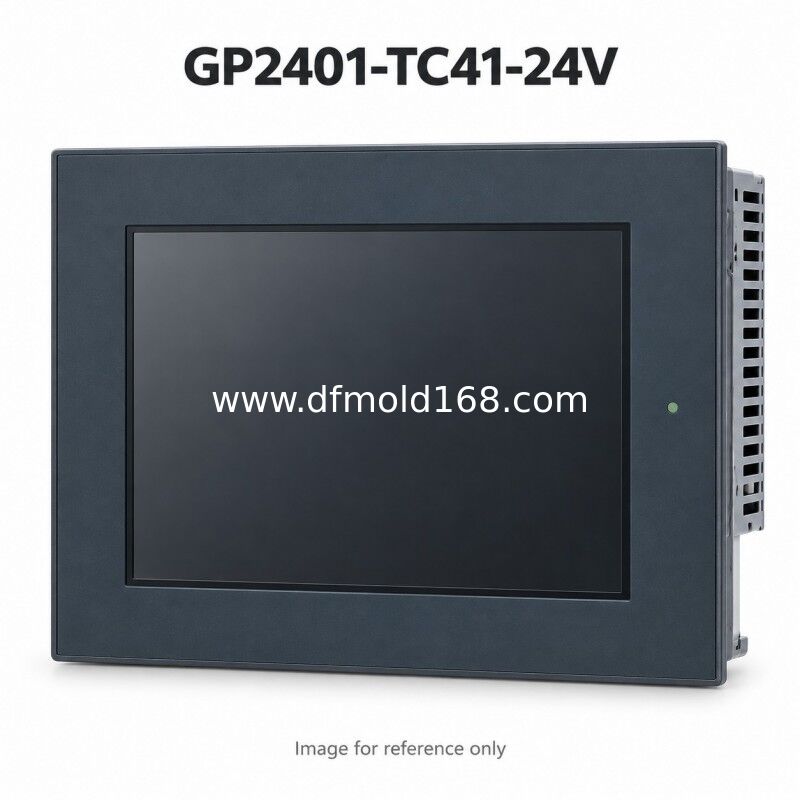

GP2401-TC41-24V 7.4 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

The GP2401-TC41-24V is a 7.4-inch TFT color operator panel with 640 x 480 resolution and a 24 V DC supply. It has a main RS-232C/RS-422 interface, a dedicated tool connector and a CompactFlash slot. Its 2 MB application memory and serial communication suit an existing project configured for this exact reference. Check the 204.5 x 159.5 mm cabinet opening and the original project backup when ordering a spare. The similar GP2400-TC41-24V has additional communication interfaces, so the model number and rear connectors should be compared before accepting an offer.

Supply and Quotation

Request a quotation for GP2401-TC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2401-TC41-24V reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Is this a 7.4-inch or 7.5-inch panel?
   The official product guide identifies this reference as 7.4 inches. Its resolution is 640 x 480 pixels and its nominal panel opening is 204.5 x 159.5 mm. Use the model and installation drawing when matching an existing panel.
2. How does it differ from GP2400-TC41-24V?
   GP2401-TC41-24V has 2 MB application memory and no built-in Ethernet or expansion serial port. GP2400-TC41-24V has 4 MB application memory and those additional interfaces. Verify the machine communication requirement before considering either reference.
3. What installation dimensions should be checked?
   The nominal opening is 204.5 x 159.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 215 x 170 x 60 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2401-TC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
