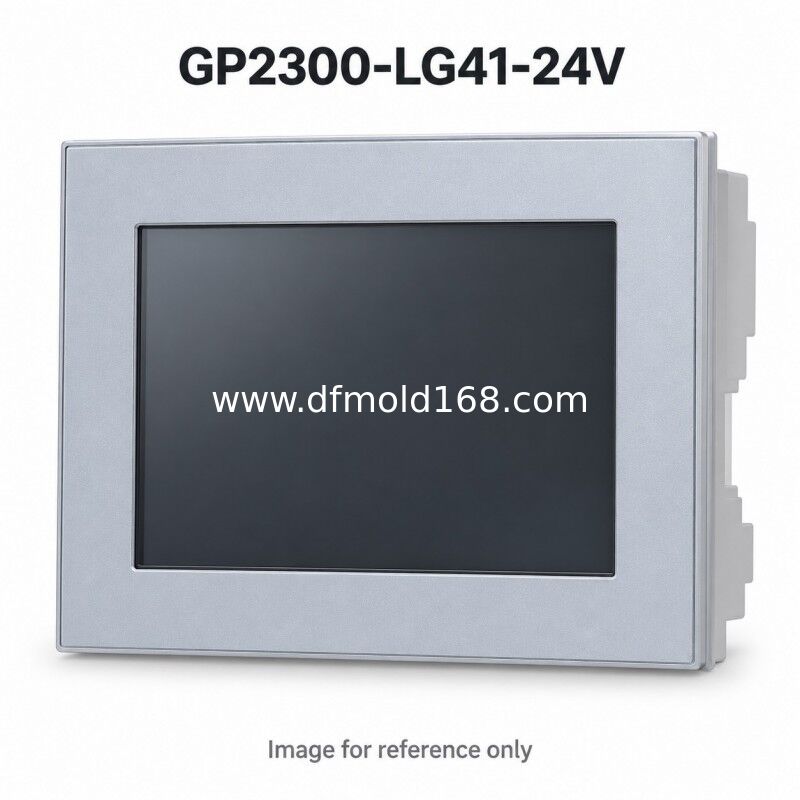

GP2300-LG41-24V 5.7 Inch Mono HMI 320x240 24VDC

Parameters

Product Description

The GP2300-LG41-24V combines a 5.7-inch monochrome display with 320 x 240 resolution and 24 V DC input. It provides 10BASE-T Ethernet, a main RS-232C/RS-422 interface and an additional RS-232C port. Application memory is 2 MB, with 256 KB of battery-backed SRAM for retained data. This configuration matters when an existing machine uses Ethernet or a second serial connection. Match the full LG reference and check the project display mode, transfer method and panel opening. Request a powered-screen photograph to assess contrast and readability alongside the model label.

Supply and Quotation

Request a quotation for GP2300-LG41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2300-LG41-24V reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Is this the same communication configuration as GP2301-LG41-24V?
   No. GP2300-LG41-24V includes 10BASE-T Ethernet and an expansion RS-232C port, with 2 MB application memory. GP2301-LG41-24V has no built-in Ethernet or expansion serial port and has 1 MB application memory.
2. Can the monochrome screen show eight gray levels?
   An eight-gray-level mode is available with compatible legacy engineering software and the corresponding project setting. Confirm the original display mode and inspect the powered screen; the hardware label alone does not identify the active project settings.
3. What installation dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 171 x 138 x 60 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2300-LG41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
