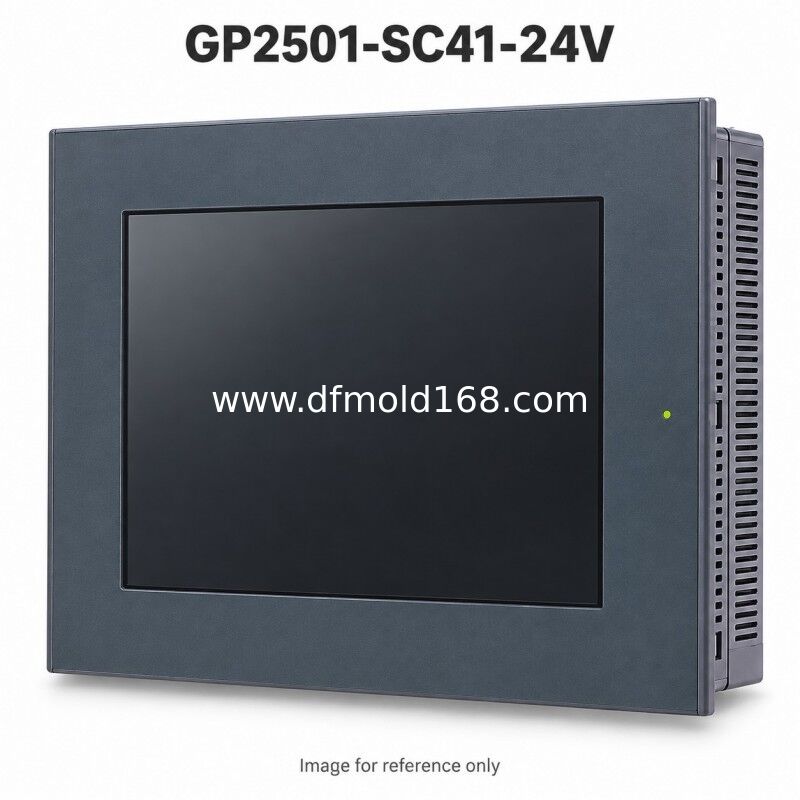

GP2501-SC41-24V 10.4 Inch STN HMI 640x480 24VDC

Parameters

Product Description

The GP2501-SC41-24V is a 10.4-inch STN color HMI with 640 x 480 resolution and a 24 V DC input. It has 2 MB application memory, 128 KB battery-backed SRAM and a CompactFlash slot. The main serial interface supports RS-232C or RS-422 through a female D-Sub 25 connector. This reference has no built-in Ethernet or secondary serial interface. For an existing machine, confirm that the SC display type, DC supply and single serial connection match the installed configuration. Check the project backup, connector wiring and panel opening before arranging transfer or commissioning.

Supply and Quotation

Request a quotation for GP2501-SC41-24V with quantity, destination and required arrival date. Send model-label, revision and connector photos when sourcing a spare. We will confirm the offered condition, availability, installed options, included accessories and delivery terms in the quotation. Software licenses, transfer cables, memory cards and machine programs require separate confirmation.

Compatibility

Match the full GP2501-SC41-24V reference, power rating, serial pinout and panel opening. Confirm the original project format, compatible legacy engineering software, passwords and transfer method. A move to a different panel requires a separate compatibility review and functional checks.

FAQ

1. Is SC41-24V the AC version?
   No. GP2501-SC41-24V requires 24 V DC. GP2501-SC11 is the separate AC reference. Retain the complete suffix and compare the nameplate with the cabinet supply before ordering.
2. What differs from GP2500-SC41-24V?
   This model has 2 MB application memory and a single main serial interface. GP2500-SC41-24V has 4 MB application memory, built-in 10BASE-T Ethernet and an additional RS-232C port. A matching screen size does not establish communication compatibility.
3. What installation dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 317 x 243 x 58 mm. Confirm panel thickness, corner radii, gasket, fasteners and cable clearance against the model-specific drawing.
4. How do I request a price for GP2501-SC41-24V?
   Send the full reference, quantity, preferred condition and delivery destination. Include nameplate and revision photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the original machine program be included?
   Confirm access to the project backup, passwords and compatible legacy software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer, recovery or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching label and connector photos, an accessory list and an agreed inspection scope covering display and touch response. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
