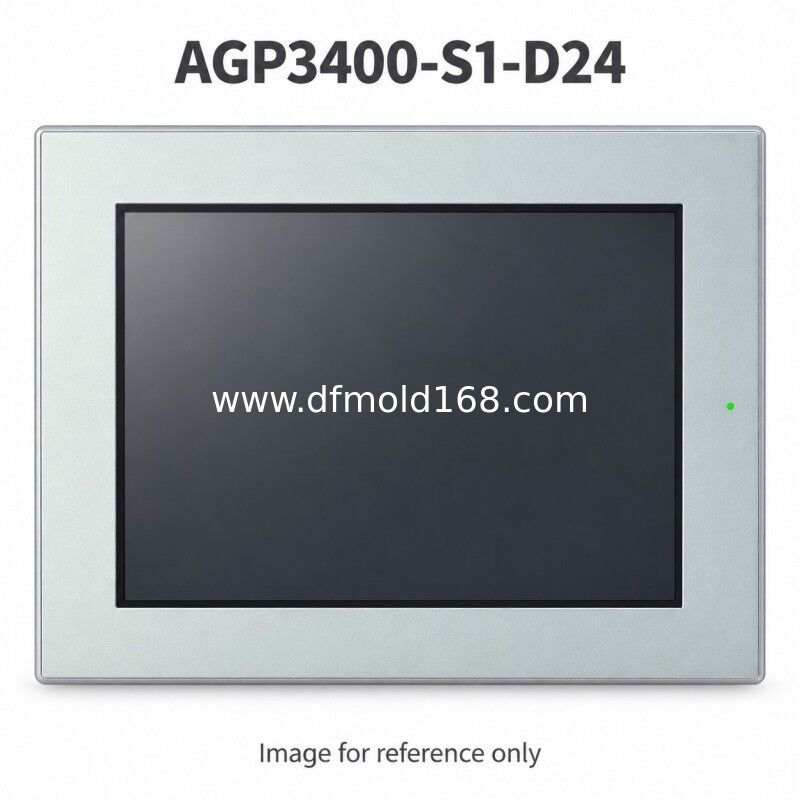

AGP3400-S1-D24 7.5 Inch STN HMI 640x480 24VDC

Parameters

Product Description

The AGP3400-S1-D24 is a 7.5-inch STN color panel with 640 x 480 resolution and 24 V DC input. Ethernet, two serial ports, a USB host connection and a CompactFlash slot support compatible machine-interface projects. Its display supports 4,096 colors and uses analog resistive touch. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photographs with the enquiry so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3400-S1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is this the STN or TFT 7.5-inch version?
   This S1 reference is the STN color version. The T1 reference uses TFT technology. Confirm the complete label, display condition and application requirements when comparing offered units.
2. Can the existing serial cable be connected to either port?
   Check the pinout and driver first. COM1 supports RS-232C/422/485 with a male D-Sub 9 connector; COM2 supports RS-422/485 with a female connector. The two ports are not interchangeable for every cable or protocol.
3. What mounting dimensions should be checked?
   The nominal panel opening is 204.5 x 159.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 215 x 170 x 60 mm. Use the installation drawing to confirm corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3400-S1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
