AGP3200-A1-D24 3.8 Inch Amber Red HMI 320x240 24VDC

Parameters

Product Description

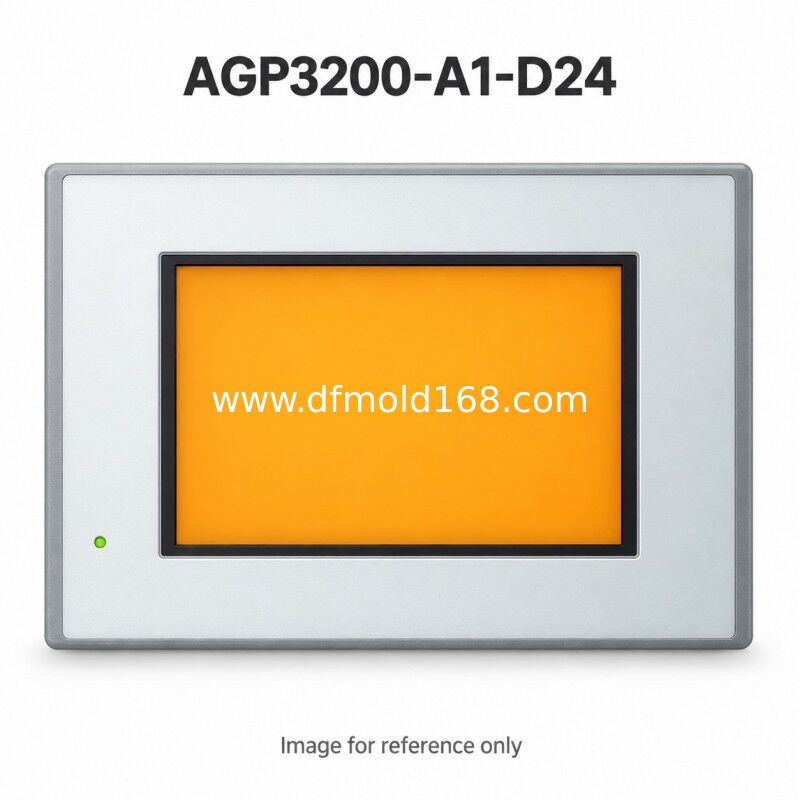

The AGP3200-A1-D24 is a compact 3.8-inch operator panel with an amber/red monochrome LCD and 320 x 240 resolution. It runs from 24 V DC and provides one serial connection, Ethernet and one USB host port. Its display and connection layout distinguish it from larger color panels. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3200-A1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is this a TFT color screen?
   No. This A1 reference uses an amber/red monochrome LCD with eight shades. Confirm the display reference and inspect the powered screen; the T1 version is a different display configuration.
2. Does the unit have COM2 or a CompactFlash slot?
   Neither is fitted. COM1 supports RS-232C/422/485 through a male D-Sub 9 connector. Ethernet and one USB host port are provided. Check the existing project-transfer method and cable requirements.
3. What mounting dimensions should be checked?
   The nominal opening is 118.5 x 92.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 130 x 104 x 40 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3200-A1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
