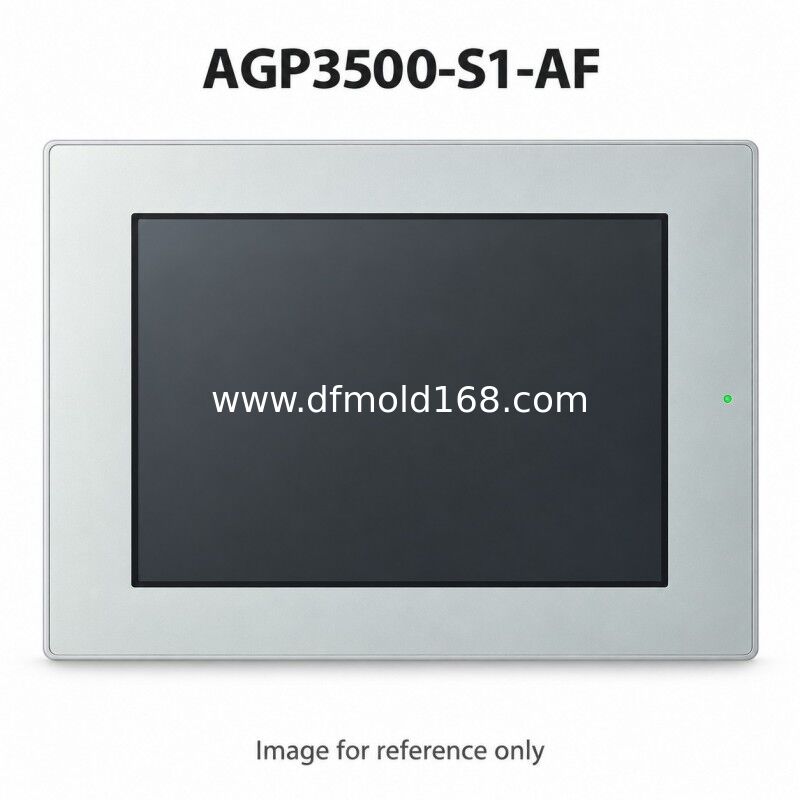

AGP3500-S1-AF 10.4 Inch STN HMI 640x480 100-240VAC

Parameters

Product Description

The AGP3500-S1-AF is a 10.4-inch STN color operator panel with 640 x 480 resolution and a 100 to 240 V AC supply. Ethernet, two serial connections, two USB host ports and a CompactFlash slot support compatible machine projects. Its mounting opening differs from the similarly sized TFT model. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3500-S1-AF with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Does the AF version accept a 24 V DC supply?
   No. This reference is rated for 100 to 240 V AC. The D24 reference is a separate power version. Check the full nameplate, terminal arrangement and cabinet supply before ordering.
2. Can it use the opening for AGP3500-T1-AF?
   Do not assume the openings match. This STN model requires a nominal 301.5 x 227.5 mm opening, while the TFT reference uses 259 x 201 mm. Confirm the drawing and available cabinet space.
3. What mounting dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 313 x 239 x 56 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3500-S1-AF?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
