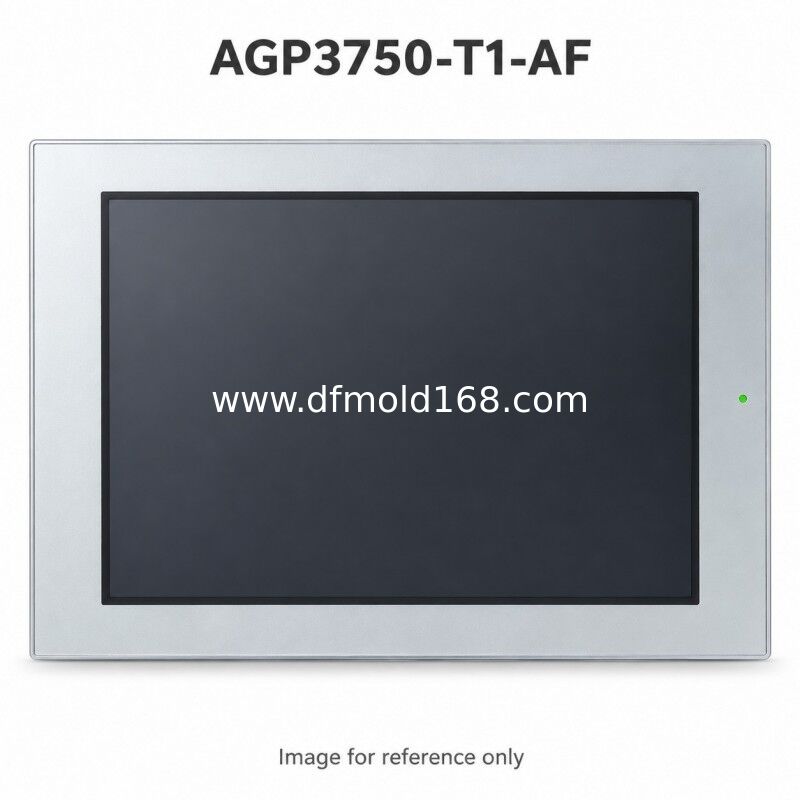

AGP3750-T1-AF 15 Inch TFT HMI 1024x768 100-240VAC

Parameters

Product Description

The AGP3750-T1-AF is a 15-inch TFT color panel with 1024 x 768 resolution and 100 to 240 V AC input. It includes Ethernet, two serial ports, two USB host ports and a CompactFlash slot. Built-in video input supports compatible camera-viewing functions defined in the machine project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3750-T1-AF with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Which video input is fitted?
   The built-in RCA video connector accepts NTSC or PAL signals. Confirm the camera format, cable and project settings. A camera or external video expansion unit is included only if listed in the quotation.
2. How does this reference differ from AGP3750-T1-D24?
   This AF reference uses 100 to 240 V AC. The D24 reference uses 24 V DC. Match the full model and installed supply before comparing offered units with the same screen size.
3. What mounting dimensions should be checked?
   The nominal opening is 383.5 x 282.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 395 x 294 x 60 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3750-T1-AF?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
