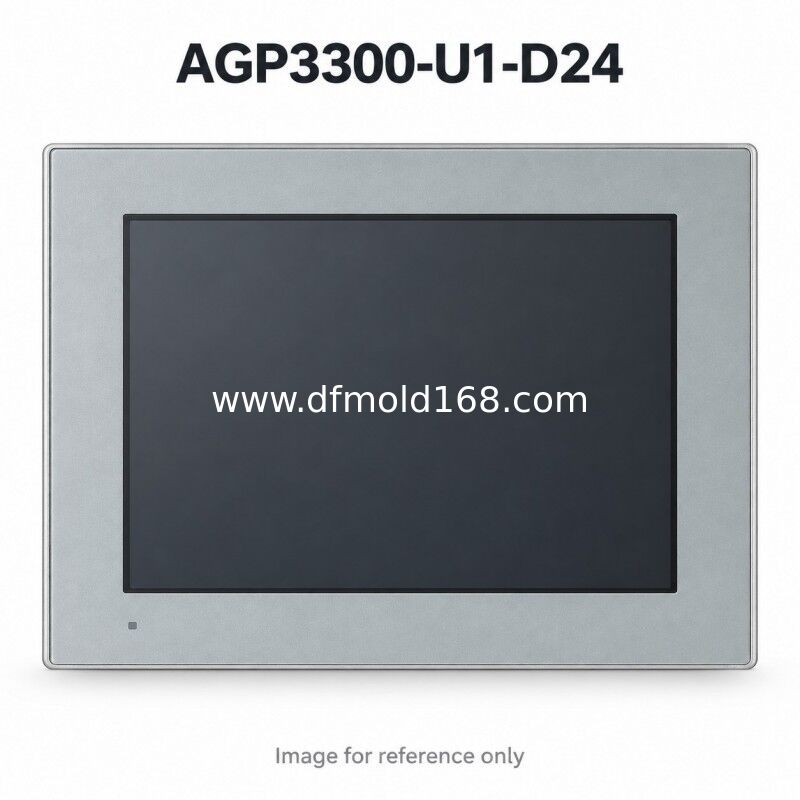

AGP3300-U1-D24 5.7 Inch TFT HMI 320x240 24VDC

Parameters

Product Description

The AGP3300-U1-D24 is a 5.7-inch ultra-luminance TFT color operator panel with 320 x 240 resolution and 24 V DC input. It includes Ethernet, two serial ports, one USB host connection and a CompactFlash slot. The U1 reference identifies the display variant and should be retained in every enquiry. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3300-U1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What does the U1 display variant identify?
   It identifies an ultra-luminance TFT color LCD at 320 x 240 pixels. Match the complete model and inspect the offered display. Brightness alone does not establish suitability for a particular installation environment.
2. Are the two serial ports identical?
   No. COM1 supports RS-232C/422/485 through a male D-Sub 9 connector. COM2 supports RS-422/485 through a female connector. Check the cable pinout and configured driver for the intended port.
3. What mounting dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 167.5 x 135 x 59.5 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3300-U1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
