AGP3450-T1-D24 7.5 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

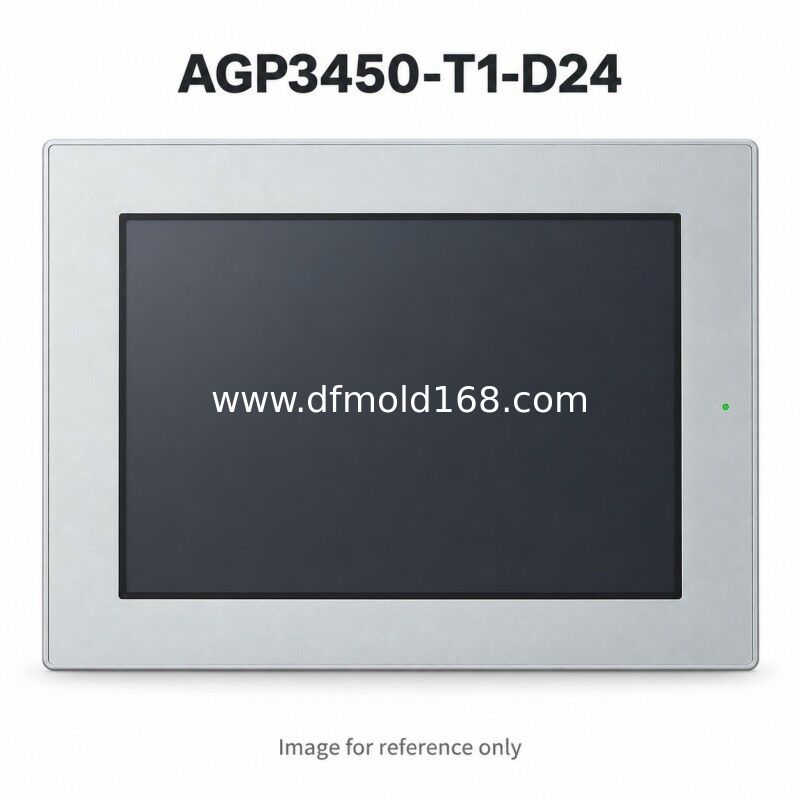

The AGP3450-T1-D24 is a 7.5-inch TFT color operator panel with 640 x 480 resolution and a 24 V DC supply. It includes Ethernet, two serial connections, one USB host port and a CompactFlash slot. The built-in video input distinguishes it from basic configurations with the same screen size. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3450-T1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What video connection is built into this model?
   An RCA connector accepts NTSC or PAL video. Check the camera output, cabling and configured project functions. Confirm any required external expansion hardware separately; the connector alone does not include a camera system.
2. How many USB host ports are provided?
   There is one USB 1.1 Type A host port. Confirm the supported peripheral or transfer method and required cable. Do not copy the two-port specification from larger video-capable panels.
3. What mounting dimensions should be checked?
   The nominal opening is 204.5 x 159.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 215 x 170 x 60 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3450-T1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
