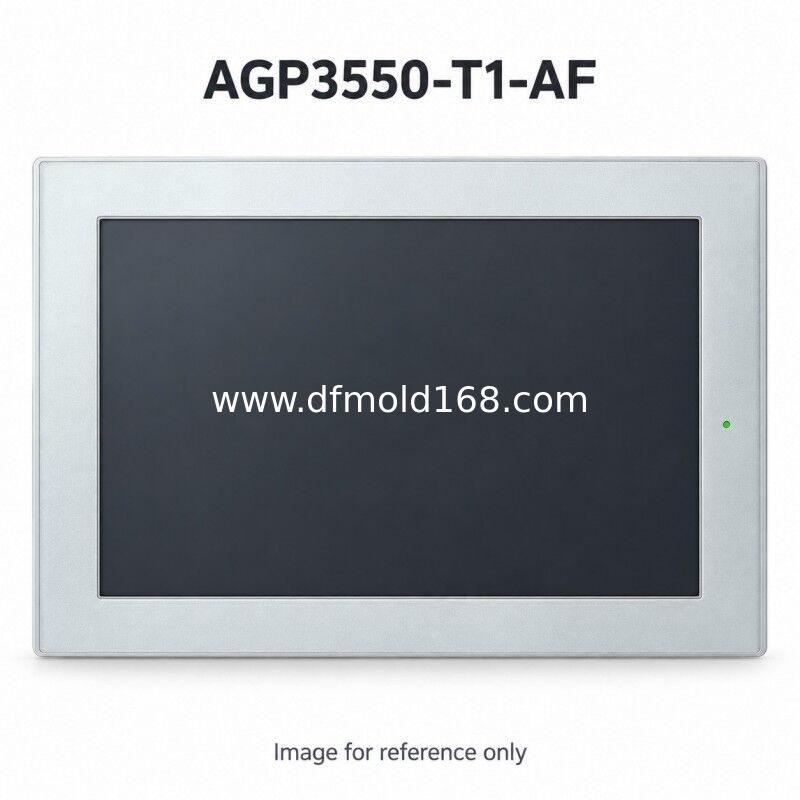

AGP3550-T1-AF 10.4 Inch TFT HMI 640x480 100-240VAC

Parameters

Product Description

The AGP3550-T1-AF provides a 10.4-inch TFT color screen at 640 x 480 pixels and runs from 100 to 240 V AC. It includes Ethernet, two serial ports, two USB host connections and a CompactFlash slot. Its built-in RCA video input supports compatible video functions in an existing machine project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3550-T1-AF with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is this the AC-powered reference?
   Yes. AGP3550-T1-AF is rated for 100 to 240 V AC. Check the installed supply and complete nameplate before ordering. Do not infer an alternative power configuration from a shortened listing title.
2. Which video signals are supported by the built-in input?
   The RCA video input supports NTSC or PAL signals. Confirm the camera output, cable and project settings. Specify any required camera, storage card or expansion unit separately in the enquiry.
3. What mounting dimensions should be checked?
   The nominal opening is 259 x 201 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 270.5 x 212.5 x 57 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3550-T1-AF?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
