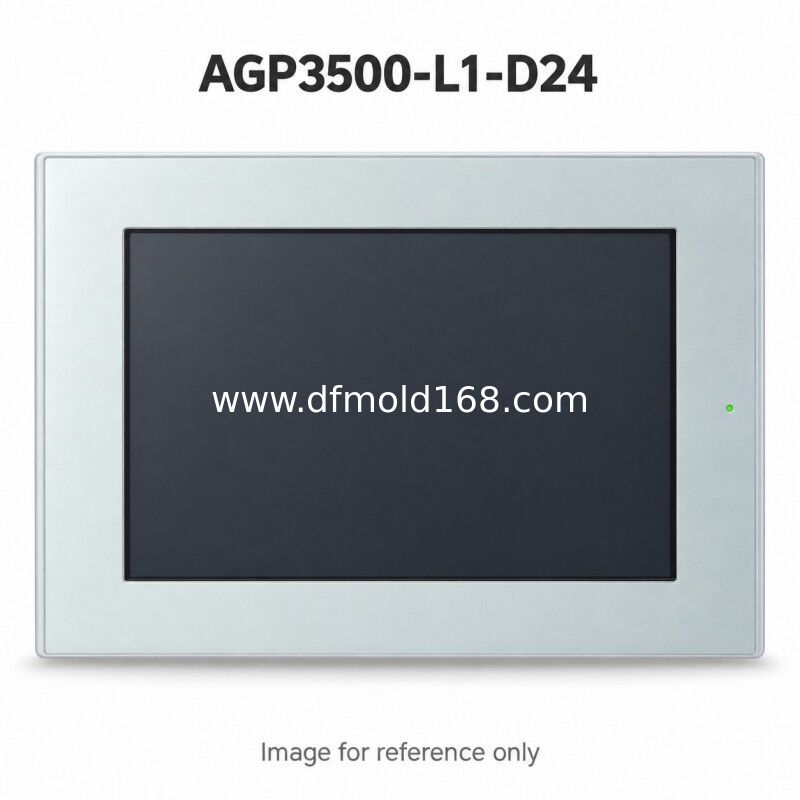

AGP3500-L1-D24 10.4 Inch Mono HMI 640x480 24VDC

Parameters

Product Description

The AGP3500-L1-D24 is a 10.4-inch monochrome HMI with 640 x 480 resolution, sixteen shades and 24 V DC input. It provides Ethernet, two serial connections, two USB host ports and a CompactFlash slot. Its enclosure and mounting opening differ from the TFT version with the same nominal screen size. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3500-L1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is the L1 version a color display?
   No. It has a monochrome LCD with sixteen shades. Retain the L1 reference when requesting a quotation and inspect the offered display contrast, backlight and touch response.
2. Does it fit the same opening as AGP3500-T1-D24?
   No. This monochrome model uses a nominal 301.5 x 227.5 mm opening. The TFT reference uses 259 x 201 mm. Check the complete mounting drawing before changing display variants.
3. What mounting dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 313 x 239 x 56 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3500-L1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
