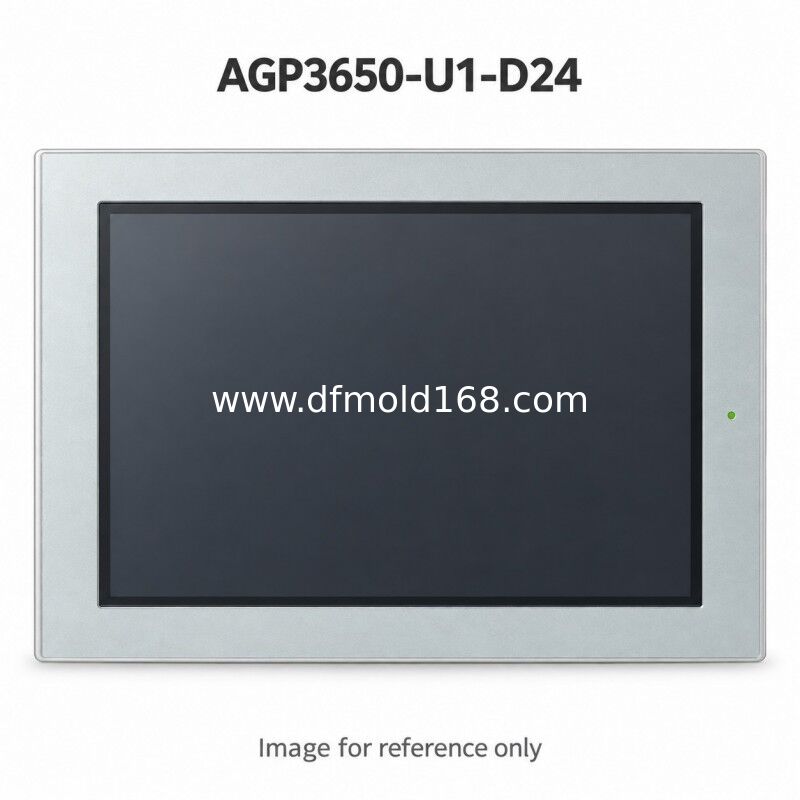

AGP3650-U1-D24 12.1 Inch TFT HMI 800x600 24VDC

Parameters

Product Description

The AGP3650-U1-D24 is a 12.1-inch ultra-luminance TFT color panel with 800 x 600 resolution and 24 V DC input. It provides Ethernet, two serial ports, two USB host connections and a CompactFlash slot. Built-in video input is available for compatible camera-viewing functions in the configured machine project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3650-U1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. What distinguishes the U1 display?
   The U1 reference uses an ultra-luminance TFT color LCD with 800 x 600 pixels. Preserve the complete model when comparing units. Confirm display condition and the installation requirements separately from the brightness designation.
2. Does this model accept AC power?
   No. This D24 reference requires 24 V DC. Confirm the terminal wiring and supply against the unit label. Also check the NTSC/PAL signal and cable if the built-in RCA video input is required.
3. What mounting dimensions should be checked?
   The nominal opening is 301.5 x 227.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 313 x 239 x 56 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3650-U1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
