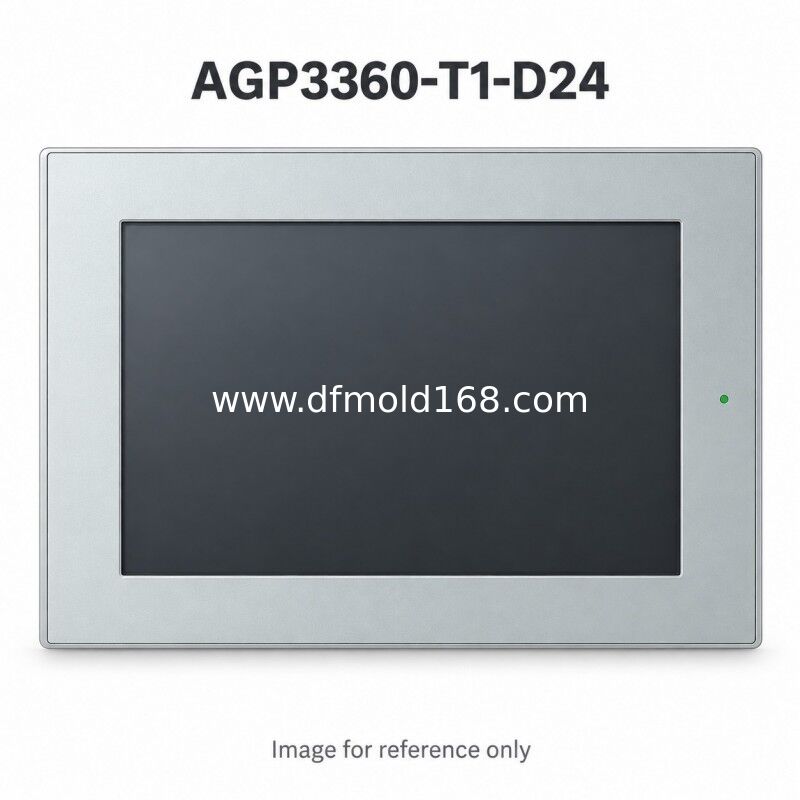

AGP3360-T1-D24 5.7 Inch TFT HMI 640x480 24VDC

Parameters

Product Description

The AGP3360-T1-D24 is a 5.7-inch TFT color operator panel with 640 x 480 resolution and 24 V DC input. It includes Ethernet, two serial ports, two USB host connections and a CompactFlash slot. A built-in RCA video input adds a connection for compatible camera-viewing functions in the project. When sourcing a spare, match the full nameplate reference, communication wiring and panel opening. Confirm the hardware revision and project requirements before transfer. Send label and connector photos so the offered configuration, condition and included items can be checked against the machine.

Supply and Quotation

Request a quotation for AGP3360-T1-D24 with quantity, destination and required arrival date. Send model-label and connector photos when sourcing a spare. We will confirm the offered condition, hardware revision, availability, included accessories and delivery terms in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the machine supply, communication wiring, panel opening and project requirements. Confirm the project backup, compatible engineering software and firmware. Hardware revision can affect memory or backlight details; check the offered unit before transfer or commissioning.

FAQ

1. Is the resolution the same as AGP3300-T1-D24?
   No. AGP3360-T1-D24 has 640 x 480 pixels. AGP3300-T1-D24 has 320 x 240. Match the project target and screen layout rather than selecting only by the common 5.7-inch size.
2. How does it differ from AGP3310-T1-D24?
   Both use a 5.7-inch 640 x 480 TFT display. AGP3360-T1-D24 adds built-in NTSC/PAL video input through an RCA connector. Confirm whether the machine project requires this video function.
3. What mounting dimensions should be checked?
   The nominal opening is 156 x 123.5 mm, with +1/-0 mm tolerance on each dimension. External dimensions are 167.5 x 135 x 59.5 mm. Use the installation drawing to check corner radii, panel thickness, gasket, fasteners and cable clearance.
4. How do I request a price for AGP3360-T1-D24?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Price and availability are confirmed for the specific offered unit.
5. Will the machine program already be installed?
   Confirm access to the project backup, passwords and required software before purchase. Hardware supply does not establish that your application is loaded. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
