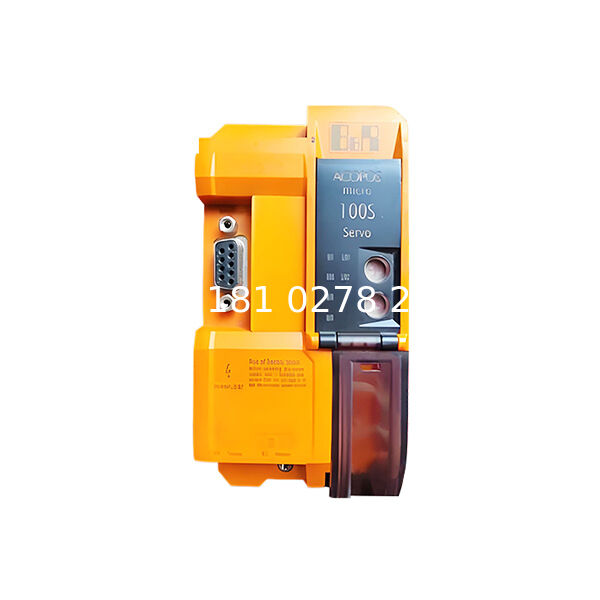

The B&R 80VD100PS.C00X-01 is an ACOPOSmicro single-axis servo inverter module designed for compact motion systems using EnDat 2.2 motor feedback.
This model controls one servo motor and communicates through POWERLINK. It operates from a 24 to 64 VDC supply and provides 8 A continuous current for compact machine axes such as feeders, indexing units, handling mechanisms, and positioning assemblies.
The EnDat 2.2 interface is the defining feedback feature of this version. It should be used only where the connected motor and original machine configuration require EnDat 2.2 feedback. The module also includes two trigger-capable digital inputs, one 24 VDC digital output, a motor holding-brake connection, and an enable input.
The encoder backup battery is not included. The required 80XB120A2.36-00 battery and terminal blocks must be ordered separately. Before replacement, verify the motor feedback type, POWERLINK network configuration, original terminal set, and installed machine parameters.
This product is a servo inverter module only. It should not be described as a PLC, adaptive controller, standard frequency inverter, servo motor, power supply module, or standalone I/O module.
Key Features
Single-axis servo inverter module
POWERLINK communication
One EnDat 2.2 feedback interface
24 to 64 VDC power supply range
8 A continuous current
Two trigger-capable digital inputs
One 24 VDC 1 A digital output
Motor holding-brake connection
Enable input
Encoder backup battery support
Optional braking resistor support
Compact ACOPOSmicro format
Typical Applications
Compact packaging machinery
Servo feeders
Labeling equipment
Rotary indexing systems
Assembly stations
Small transfer axes
Material handling mechanisms
EnDat servo motor retrofit projects
Installation Notes
Confirm that the original module is 80VD100PS.C00X-01 and that the connected motor uses EnDat 2.2 feedback.
Install the module vertically on a conductive and properly earthed mounting plate inside a grounded electrical cabinet.
Verify the POWERLINK configuration, 24 to 64 VDC supply, motor cable, EnDat wiring, brake wiring, enable circuit, and machine parameters before commissioning.
Order the correct terminal-block set and encoder backup battery separately before replacement.
FAQ
Q
Is 80VD100PS.C00X-01 a servo motor
A
No it is a single-axis ACOPOSmicro servo inverter module
Q
How many motors can this module control
A
It supports one servo motor connection
Q
What feedback interface does this version use
A
It includes one EnDat 2.2 interface
Q
What communication interface does it use
A
It uses POWERLINK communication
Q
What supply voltage is required
A
The module operates from 24 to 64 VDC with ±25 percent tolerance
Q
Is the encoder backup battery included
A
No the 80XB120A2.36-00 encoder backup battery must be ordered separately
