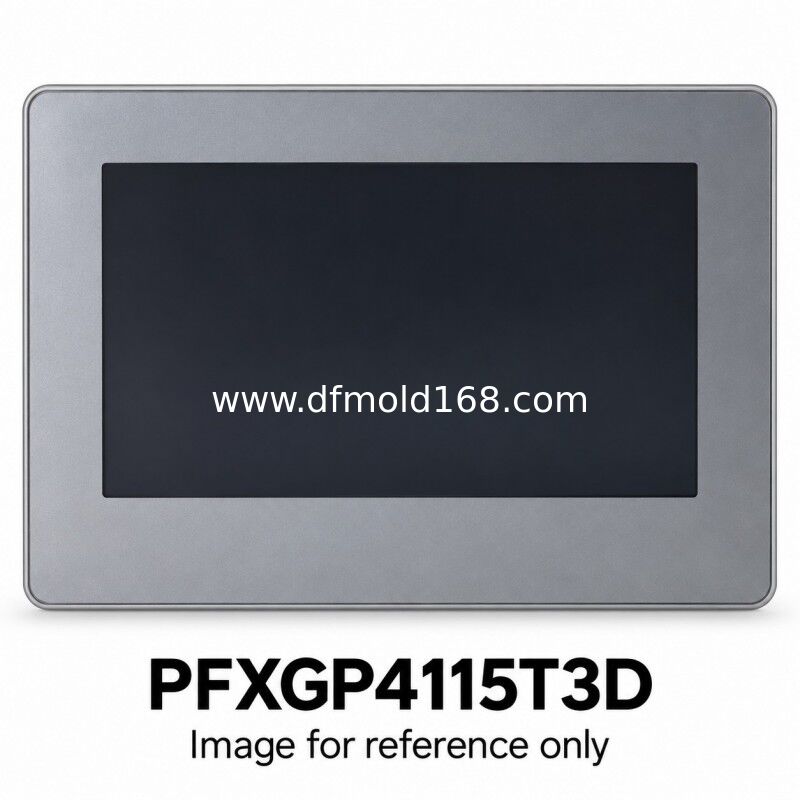

PFXGP4115T3D 4.3 Inch NVRAM RS232 HMI 480x272 12-24VDC

Parameters

Product Description

PFXGP4115T3D combines a 4.3-inch, 480 x 272 TFT display with RS-232C communication and dedicated NVRAM. The hardware contains 512 KB NVRAM, with 320 KB specified for backup use in the GP-Pro EX configuration. This memory arrangement distinguishes the T3D reference from a T2D unit of the same screen size. The panel accepts 12 to 24 V DC and includes USB host and Mini-B device ports. Confirm the project retention settings and any required clock battery option separately; neither a matching display nor a memory specification establishes that the machine program is included.

Supply and Quotation

Request a quotation for PFXGP4115T3D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Confirm that a supported GP-Pro EX version supports PFXGP4115T3D, then review the source project, driver and RS-232C settings. Preserve the T1D, T2D or T3D suffix in the order. Check the 112.5 x 77.5 mm opening, any mounting adapter and the required data-retention behavior. A software license, original application and optional RTC battery set require separate confirmation.

FAQ

1. How does T3D differ from the T2D reference?
   T3D has dedicated NVRAM: 512 KB is installed, with 320 KB available for backup in the documented GP-Pro EX configuration. T2D uses flash-based backup without dedicated NVRAM. Match the application retention requirements and keep the exact suffix.
2. Does the serial connector also provide Ethernet?
   No. The built-in controller interface is RS-232C on a removable nine-pin terminal block. There is no built-in Ethernet port. Check the terminal assignments and supported driver; USB host and device ports have different functions.
3. What is required when fitting an older 105 x 66 mm opening?
   The standard nominal opening is 112.5 x 77.5 mm. PFXZCFAD31 is the specified adapter for a 105 x 66 mm opening and is quoted separately. Check the installation drawing, cabinet clearance, project conversion and touch layout before installation.
4. How do I request a price for PFXGP4115T3D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
