PFXGP4107G1D 3.4 Inch Green Mono Isolated RS485 HMI 24VDC

Parameters

Product Description

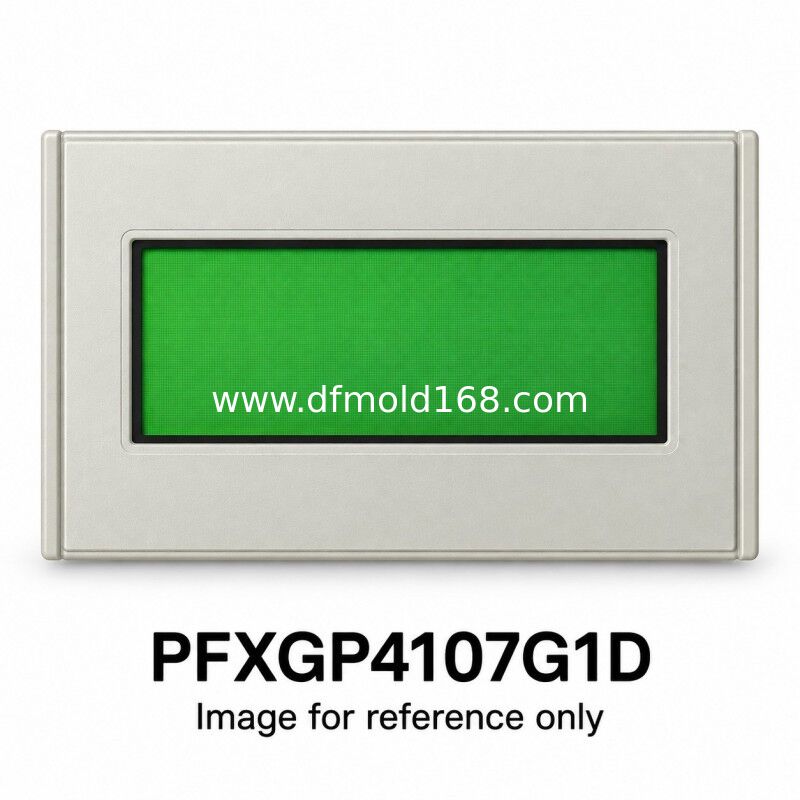

PFXGP4107G1D is a 3.4-inch monochrome operator panel distinguished by an isolated RS-485 interface on a female nine-pin D-Sub connector. Its 200 x 80 STN display uses green, orange and red backlight indications, and its rated supply is 24 V DC. The isolation requirement and connector make it different from PFXGP4106G1D, even though their screen specifications are similar. Match the controller driver, complete pinout and grounding arrangement before selecting a spare. Inspect the display and touch response and confirm that the required cable, connectors and mounting parts are included.

Supply and Quotation

Request a quotation for PFXGP4107G1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4107G1D to the original GP-Pro EX project, controller driver and Isolated RS485 connection. Retain the green / orange / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Can PFXGP4106G1D be treated as the same communication version?
   No. PFXGP4107G1D has isolated RS-485 on a female nine-pin D-Sub connector. PFXGP4106G1D uses RS-422/485 on a removable terminal block. Confirm the isolation requirement, driver and cable pinout before considering any alternative.
2. What does the display suffix change?
   This G1D reference uses green / orange / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4107G1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
