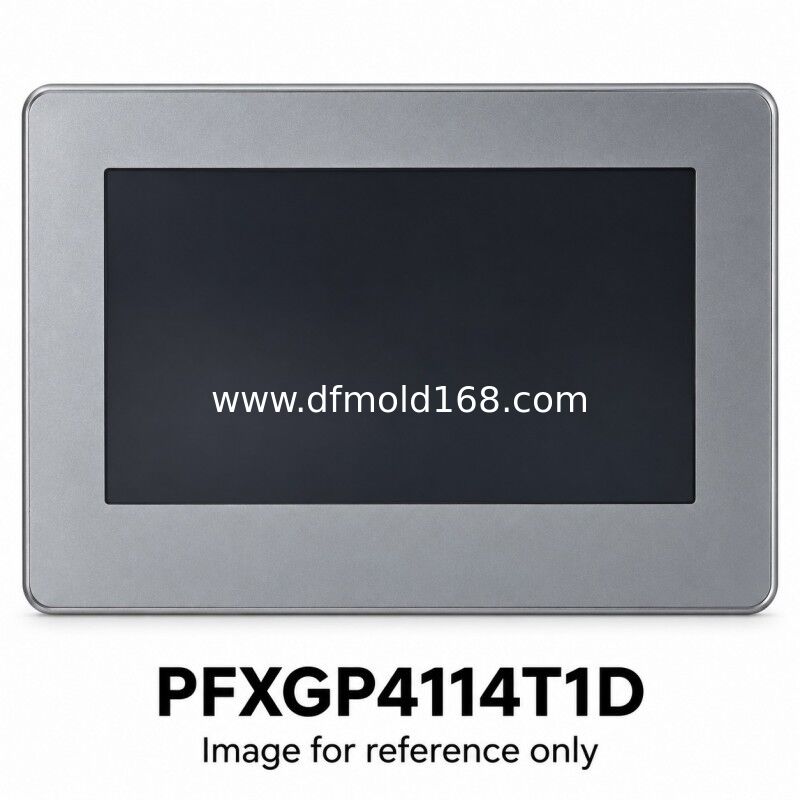

PFXGP4114T1D 4.3 Inch BLUE Ethernet HMI 480x272 12-24VDC

Parameters

Product Description

PFXGP4114T1D is a BLUE-only 4.3-inch TFT color HMI with Ethernet communication and 480 x 272 resolution. It accepts 12 to 24 V DC and provides USB Type A and Mini-B interfaces. The T1D suffix identifies the software-specific version and must be preserved when comparing offers with PFXGP4114T2D. A common screen size and Ethernet connector do not establish project compatibility. Confirm that the original application and engineering environment support this exact reference, then check network settings, panel dimensions and available project backups before ordering the unit for a machine.

Supply and Quotation

Request a quotation for PFXGP4114T1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Confirm that a supported BLUE version supports PFXGP4114T1D, then review the source project, driver and Ethernet settings. Preserve the T1D, T2D or T3D suffix in the order. Check the 112.5 x 77.5 mm opening, any mounting adapter and the required data-retention behavior. A software license, original application and optional RTC battery set require separate confirmation.

FAQ

1. Can a T2D project be assumed compatible with this T1D model?
   No. The T1D designation is BLUE-only. Confirm the original engineering platform, project source and supported target before ordering. Physical similarity does not establish that a GP-Pro EX application can be loaded into this unit.
2. Can a serial PLC cable connect to this model directly?
   The built-in controller interface is Ethernet, with no serial COM port. Check the controller Ethernet driver and network configuration. A serial-only machine connection requires a separately verified solution rather than assuming that a USB connector is a serial port.
3. What is required when fitting an older 105 x 66 mm opening?
   The standard nominal opening is 112.5 x 77.5 mm. PFXZCFAD31 is the specified adapter for a 105 x 66 mm opening and is quoted separately. Check the installation drawing, cabinet clearance, project conversion and touch layout before installation.
4. How do I request a price for PFXGP4114T1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
