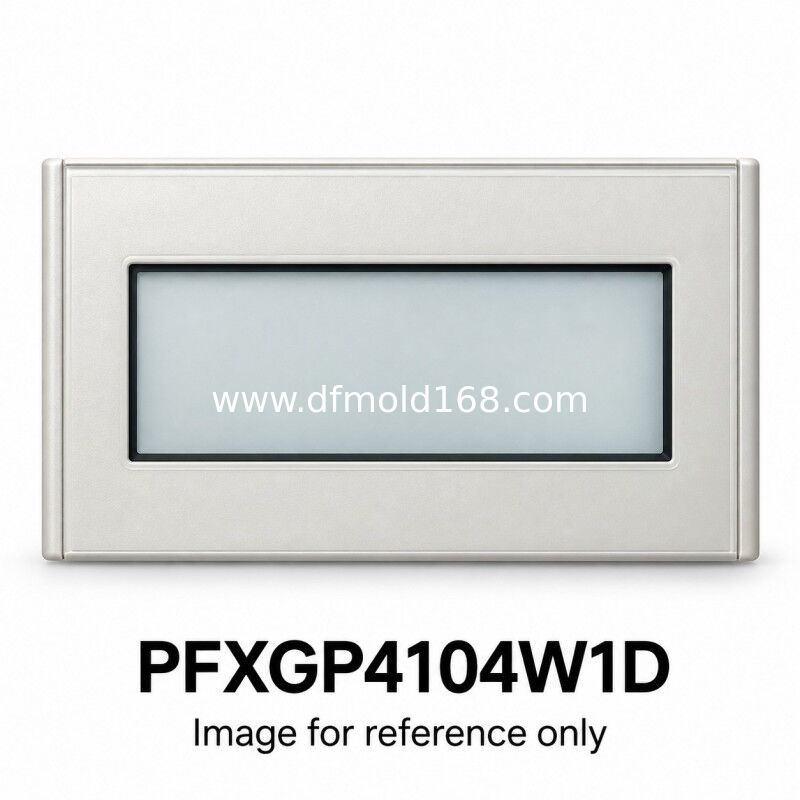

PFXGP4104W1D 3.4 Inch White Mono Ethernet HMI 24VDC

Parameters

Product Description

PFXGP4104W1D is a 3.4-inch monochrome HMI with an Ethernet connection and white, pink or red backlight indications. The STN screen has 200 x 80 pixels and uses analog resistive touch input. This Ethernet reference has no built-in serial COM port; its USB host and Mini-B interfaces serve separate transfer and peripheral functions. Match the network configuration and project driver before purchase. For an existing cabinet, check the 105 x 66 mm nominal opening and inspect a powered screen to confirm the backlight indications, contrast and touch condition.

Supply and Quotation

Request a quotation for PFXGP4104W1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4104W1D to the original GP-Pro EX project, controller driver and Ethernet connection. Retain the white / pink / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Does this model also have a built-in serial COM port?
   No. This reference uses one 10BASE-T/100BASE-TX Ethernet port for its built-in controller connection. Match the network address and controller driver in the project. USB connectors do not establish RS-232C or RS-422/485 compatibility.
2. What does the display suffix change?
   This W1D reference uses white / pink / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4104W1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
