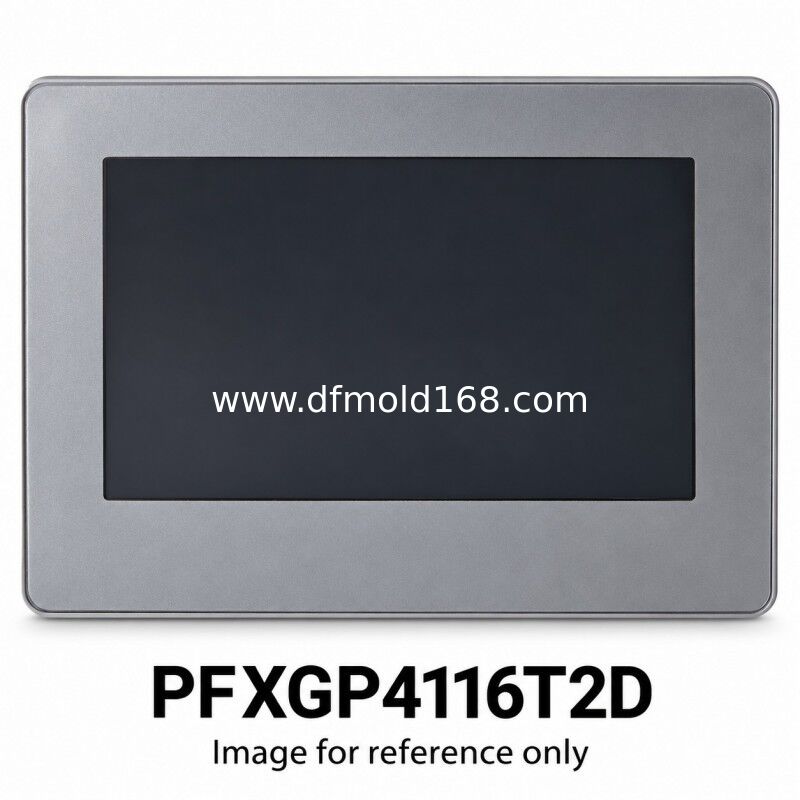

PFXGP4116T2D 4.3 Inch RS422 485 HMI 480x272 12-24VDC

Parameters

Product Description

PFXGP4116T2D uses a 4.3-inch TFT color screen with 480 x 272 pixels and an RS-422/485 controller interface. It is intended for a matching serial project and does not include a built-in Ethernet port. A nine-pin removable terminal block carries the serial connection; USB Type A and Mini-B ports support compatible accessories and transfer methods. Before ordering, compare the controller driver, wiring and communication settings with the installed unit. Check the 112.5 x 77.5 mm panel opening and confirm the supplied terminal block, fastening hardware and project access.

Supply and Quotation

Request a quotation for PFXGP4116T2D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Confirm that a supported GP-Pro EX version supports PFXGP4116T2D, then review the source project, driver and RS-422/485 settings. Preserve the T1D, T2D or T3D suffix in the order. Check the 112.5 x 77.5 mm opening, any mounting adapter and the required data-retention behavior. A software license, original application and optional RTC battery set require separate confirmation.

FAQ

1. Does this T2D reference include dedicated NVRAM?
   No. It uses flash-based backup storage. The documented GP-Pro EX backup area is 128 KB. Check the project data-retention settings and software version; do not apply the dedicated NVRAM specification of PFXGP4115T3D to this reference.
2. Does the serial connector also provide Ethernet?
   No. The built-in controller interface is RS-422/485 on a removable nine-pin terminal block. There is no built-in Ethernet port. Check the terminal assignments and supported driver; USB host and device ports have different functions.
3. What is required when fitting an older 105 x 66 mm opening?
   The standard nominal opening is 112.5 x 77.5 mm. PFXZCFAD31 is the specified adapter for a 105 x 66 mm opening and is quoted separately. Check the installation drawing, cabinet clearance, project conversion and touch layout before installation.
4. How do I request a price for PFXGP4116T2D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
