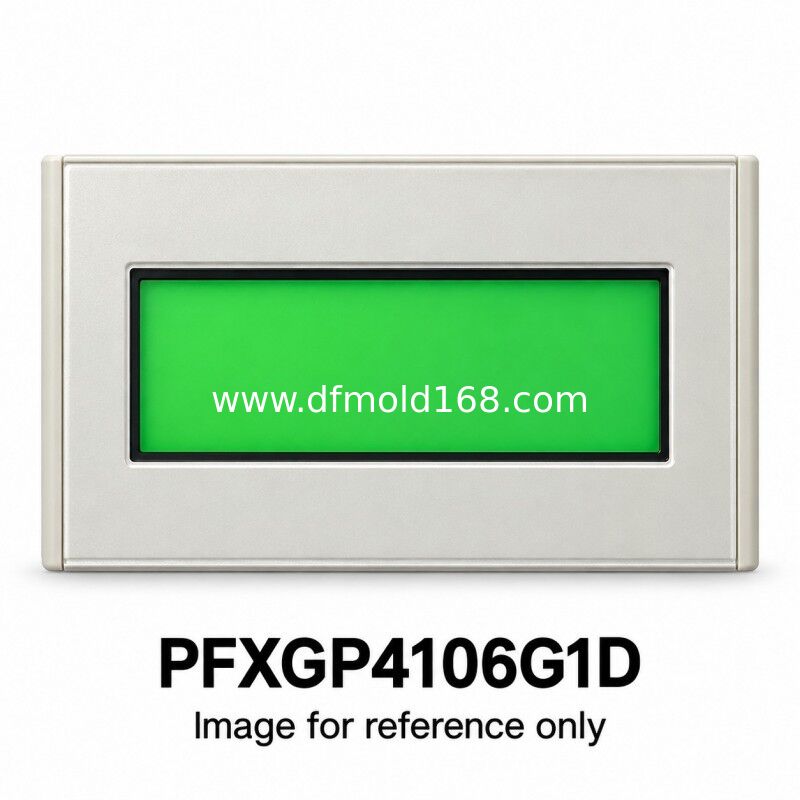

PFXGP4106G1D 3.4 Inch Green Mono RS422 485 HMI 24VDC

Parameters

Product Description

PFXGP4106G1D is the green, orange and red backlight version of a 3.4-inch monochrome HMI with RS-422/485 communication. The screen resolution is 200 x 80 pixels, and the unit requires 24 V DC. Its removable nine-pin serial terminal block differs from the isolated D-Sub connection used on PFXGP4107G1D. Check the required electrical interface as well as the controller protocol when sourcing a spare. The panel provides USB host and Mini-B device ports; transfer cables, machine programs and mounting accessories should be identified explicitly in the quotation.

Supply and Quotation

Request a quotation for PFXGP4106G1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4106G1D to the original GP-Pro EX project, controller driver and RS-422/485 connection. Retain the green / orange / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Is this the isolated RS-485 version?
   This reference is specified as RS-422/485 on a removable nine-pin terminal block. PFXGP4107G1D is the separate isolated RS-485 model with a female D-Sub connector. Confirm whether isolation is required and check the complete wiring before substitution.
2. What does the display suffix change?
   This G1D reference uses green / orange / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4106G1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
