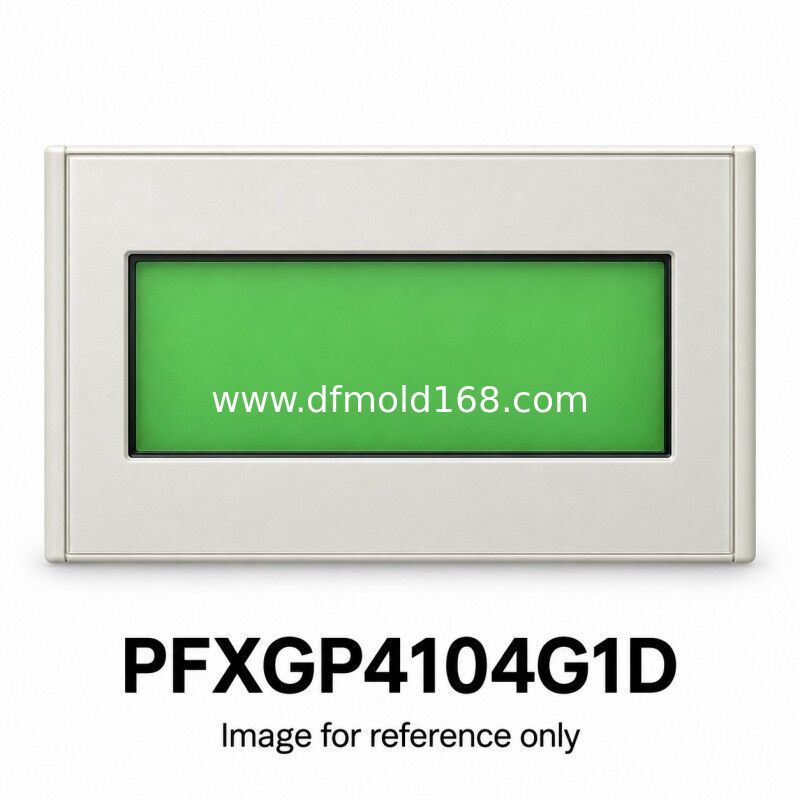

PFXGP4104G1D 3.4 Inch Green Mono Ethernet HMI 24VDC

Parameters

Product Description

PFXGP4104G1D brings Ethernet communication to a compact 3.4-inch STN monochrome panel. It displays 200 x 80 pixels with green, orange and red backlight indications and operates from 24 V DC. The model provides USB Type A host and Mini-B device connections but no built-in serial port. Its G1D display configuration should be matched against the original project, particularly where backlight color signals machine status. Confirm network settings, the application backup and the 105 x 66 mm panel opening. An exact label photograph helps distinguish it from serial and white-backlight variants.

Supply and Quotation

Request a quotation for PFXGP4104G1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4104G1D to the original GP-Pro EX project, controller driver and Ethernet connection. Retain the green / orange / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Does this model also have a built-in serial COM port?
   No. This reference uses one 10BASE-T/100BASE-TX Ethernet port for its built-in controller connection. Match the network address and controller driver in the project. USB connectors do not establish RS-232C or RS-422/485 compatibility.
2. What does the display suffix change?
   This G1D reference uses green / orange / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4104G1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
