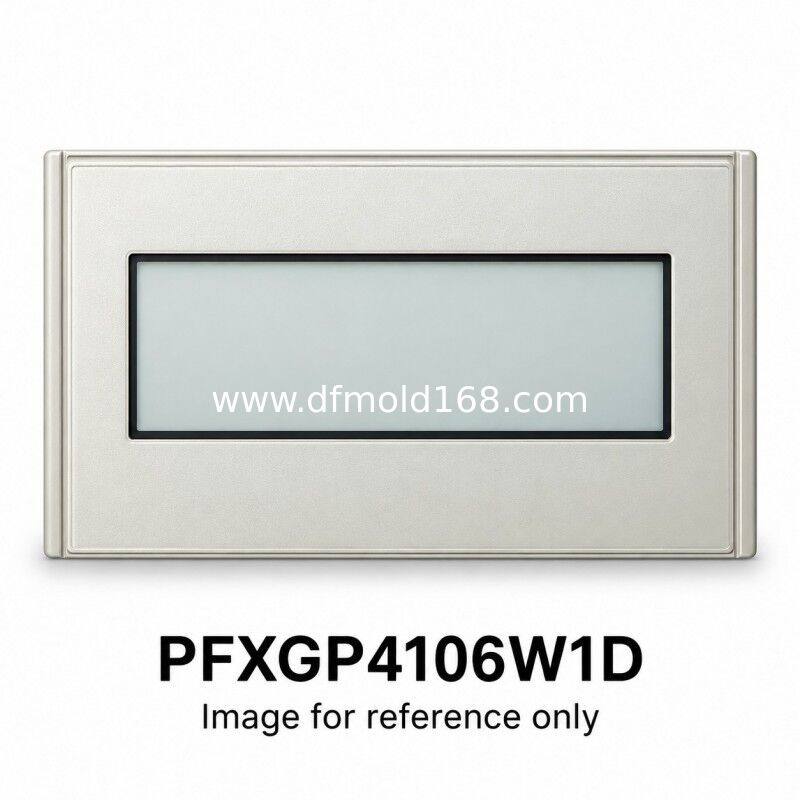

PFXGP4106W1D 3.4 Inch White Mono RS422 485 HMI 24VDC

Parameters

Product Description

PFXGP4106W1D is a 24 V DC monochrome operator panel with a 3.4-inch STN screen and 200 x 80 resolution. White, pink and red backlight indications distinguish its W1D display configuration from the green variant. The built-in controller connection is RS-422/485 through a removable nine-pin terminal block, with no Ethernet interface. Check the original wiring and driver settings before using an offered unit as a spare. Match the displayed indication colors, inspect contrast and touch response, and verify the 105 x 66 mm nominal panel opening and included connectors.

Supply and Quotation

Request a quotation for PFXGP4106W1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4106W1D to the original GP-Pro EX project, controller driver and RS-422/485 connection. Retain the white / pink / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Is this the isolated RS-485 version?
   This reference is specified as RS-422/485 on a removable nine-pin terminal block. PFXGP4107G1D is the separate isolated RS-485 model with a female D-Sub connector. Confirm whether isolation is required and check the complete wiring before substitution.
2. What does the display suffix change?
   This W1D reference uses white / pink / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4106W1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
