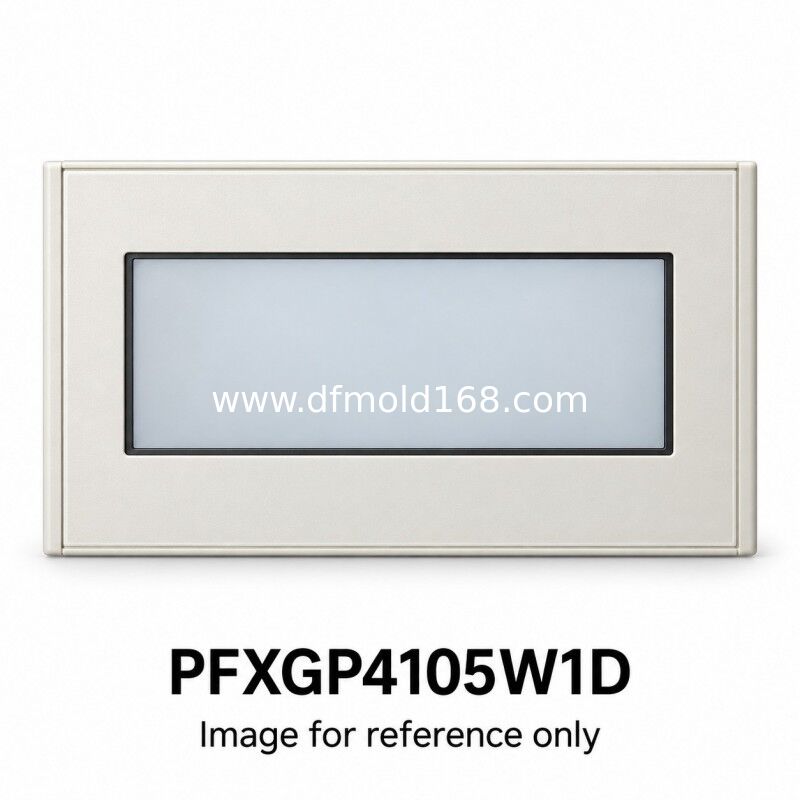

PFXGP4105W1D 3.4 Inch White Mono RS232 HMI 24VDC

Parameters

Product Description

PFXGP4105W1D uses a 3.4-inch monochrome STN display with white, pink and red backlight indications. Its 200 x 80 pixel screen is suited to the existing compact operator pages stored in a compatible project. Communication is RS-232C through a removable nine-pin terminal block, while power is 24 V DC. Preserve the W1D suffix when matching a machine that uses these backlight colors for status or alarms. Review the serial settings, project backup and display condition, and confirm that the offered panel includes the terminal block and required mounting parts.

Supply and Quotation

Request a quotation for PFXGP4105W1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXGP4105W1D to the original GP-Pro EX project, controller driver and RS-232C connection. Retain the white / pink / red backlight configuration and check touch response, contrast and the 105 x 66 mm nominal opening. A move to a color panel requires a project and mounting review. Confirm the terminal or network connector and transfer method before purchase.

FAQ

1. Can an existing nine-pin D-Sub cable plug directly into COM1?
   COM1 is RS-232C on a removable nine-pin terminal block, not a nine-pin D-Sub socket. Compare the original cable and terminal assignment with the installation documentation. Include the terminal block in the enquiry if it is required.
2. What does the display suffix change?
   This W1D reference uses white / pink / red backlight indications on a monochrome screen. It is not a full-color TFT display. Match the original project indication settings and request a powered-screen image to check readability.
3. Can a 4.3-inch color unit use the same opening without review?
   This panel uses a nominal 105 x 66 mm opening. The 4.3-inch color models normally use 112.5 x 77.5 mm; a specified mounting adapter may be needed. Screen resolution and the project target also change, so check both hardware and application compatibility.
4. How do I request a price for PFXGP4105W1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
