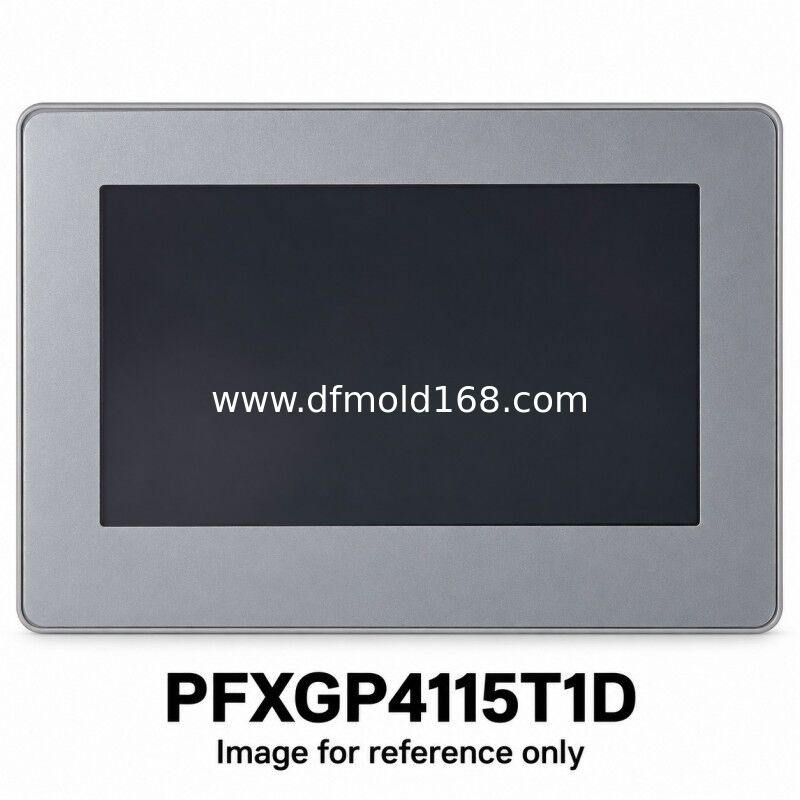

PFXGP4115T1D 4.3 Inch BLUE RS232 HMI 480x272 12-24VDC

Parameters

Product Description

PFXGP4115T1D is a BLUE-only color HMI with a 4.3-inch TFT screen, 480 x 272 resolution and an RS-232C controller interface. Its serial connection uses a removable nine-pin terminal block; USB Type A and Mini-B ports are also provided. The rated input is 12 to 24 V DC. This T1D reference needs a compatible BLUE project and must not be treated as a T2D unit based on physical similarity. Confirm the source application, serial driver and wiring, and retain the complete suffix in the quotation and supplied-unit label check.

Supply and Quotation

Request a quotation for PFXGP4115T1D with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Confirm that a supported BLUE version supports PFXGP4115T1D, then review the source project, driver and RS-232C settings. Preserve the T1D, T2D or T3D suffix in the order. Check the 112.5 x 77.5 mm opening, any mounting adapter and the required data-retention behavior. A software license, original application and optional RTC battery set require separate confirmation.

FAQ

1. Can a T2D project be assumed compatible with this T1D model?
   No. The T1D designation is BLUE-only. Confirm the original engineering platform, project source and supported target before ordering. Physical similarity does not establish that a GP-Pro EX application can be loaded into this unit.
2. Does the serial connector also provide Ethernet?
   No. The built-in controller interface is RS-232C on a removable nine-pin terminal block. There is no built-in Ethernet port. Check the terminal assignments and supported driver; USB host and device ports have different functions.
3. What is required when fitting an older 105 x 66 mm opening?
   The standard nominal opening is 112.5 x 77.5 mm. PFXZCFAD31 is the specified adapter for a 105 x 66 mm opening and is quoted separately. Check the installation drawing, cabinet clearance, project conversion and touch layout before installation.
4. How do I request a price for PFXGP4115T1D?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
