PFXGM4201TAD 3.5 Inch Modular Ethernet HMI 320x240 24VDC

Parameters

Product Description

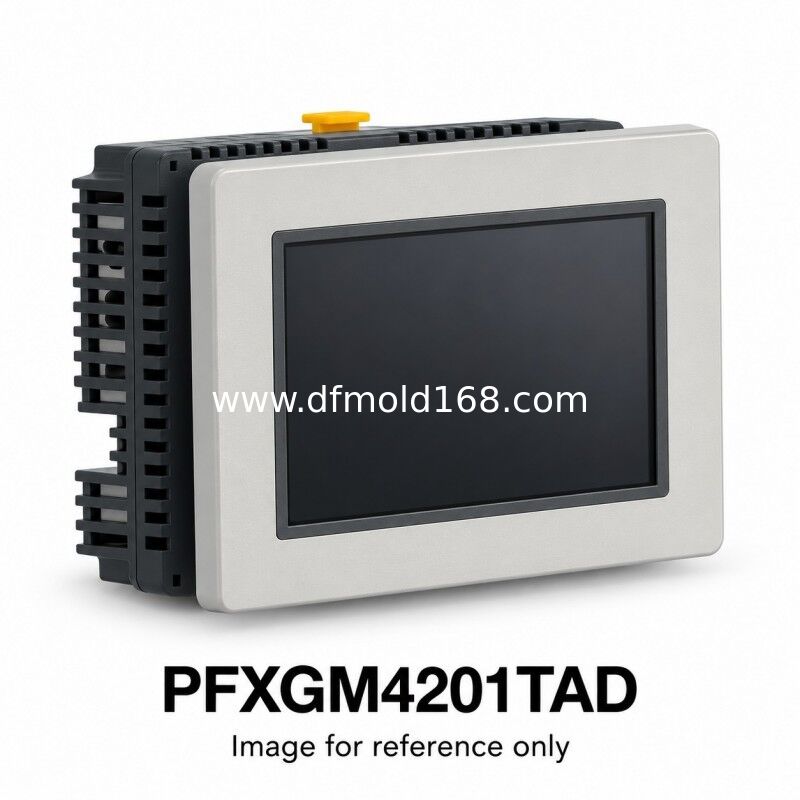

PFXGM4201TAD is a 3.5-inch modular touchscreen HMI with a 320 x 240 TFT display and 24 V DC supply. Its front display joins a rear electronics module through a 22 mm class mounting arrangement. Ethernet, a configurable RS-232C/422/485 serial port and two USB interfaces are available on the assembly. The small display does not remove the need to check space behind the panel for the rear module and cables. Confirm both modules, mounting components and the original project backup when requesting a complete spare for a compact machine control station.

Supply and Quotation

Request a quotation for PFXGM4201TAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Use a GP-Pro EX version that supports PFXGM4201TAD and the revision shown on both module labels. Match the controller driver, serial mode or Ethernet settings and the source screen project. Check the circular mounting arrangement, panel thickness, anti-rotation features and rear-module clearance. Confirm the complete assembly and mounting parts before accepting an offer.

FAQ

1. Does the order cover a complete HMI or only the display?
   Specify the front display and compatible rear electronics module together when ordering a complete operating assembly. Request photographs of both modules and confirm the mounting nut, anti-rotation parts and connectors in the quotation.
2. Are RS-232C, RS-422 and RS-485 separate serial ports?
   No. They are supported standards on one COM1 interface with a male nine-pin D-Sub connector. Match the selected mode, complete cable pinout and controller driver; the Ethernet port is a separate interface.
3. Can this fit a conventional rectangular panel opening?
   The assembly uses a 22 mm class mounting hole, with anti-rotation details defined in its installation drawing. Measure the existing opening and rear cable clearance. A rectangular cutout for a different HMI may require an engineered adapter.
4. How do I request a price for PFXGM4201TAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
