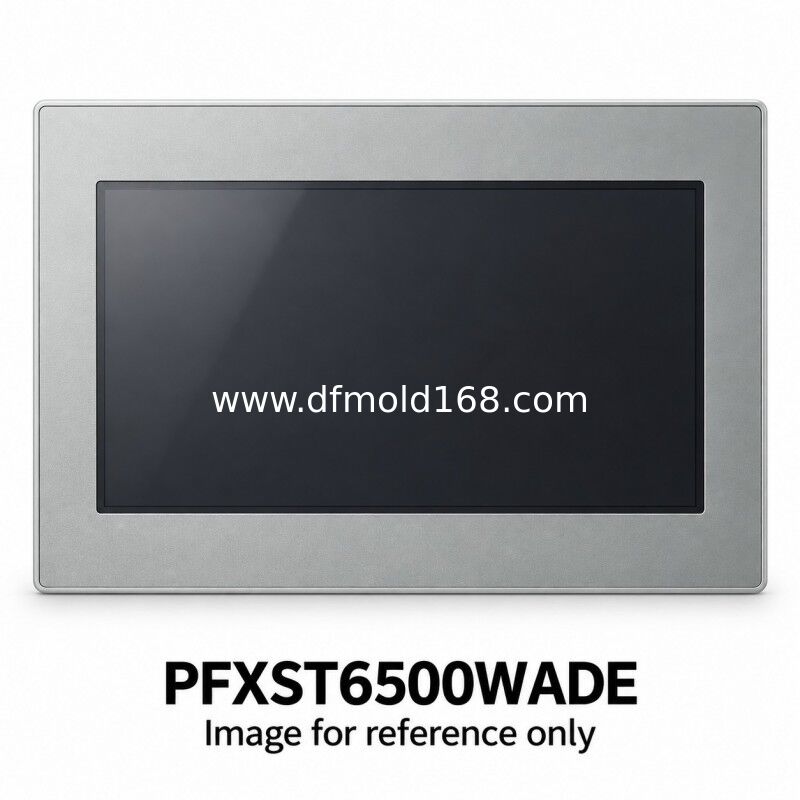

PFXST6500WADE 10.1 Inch GP-Pro EX HMI 1024x600 24VDC

Parameters

Product Description

PFXST6500WADE is a 10.1-inch widescreen HMI for GP-Pro EX projects. Its TFT display provides 1024 x 600 pixels, with analog resistive touch input and a 24 V DC supply. Two Ethernet connectors and separate RS-232C and RS-422/485 serial interfaces support the connections defined in the machine project. Use the full WADE reference when requesting a spare; the similarly named WAD model uses BLUE software. Check the existing project target, network settings and 255 x 185 mm nominal panel opening, then confirm the supplied connectors and mounting hardware.

Supply and Quotation

Request a quotation for PFXST6500WADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6500WADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 255 x 185 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6500WADE is the GP-Pro EX reference. PFXST6500WAD uses BLUE. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. Can the 10.4-inch 4:3 reference replace this panel directly?
   PFXST6500TADE has an 800 x 600 display, one Ethernet connector and a different mounting opening. This model is 10.1 inches with 1024 x 600 pixels, two Ethernet connectors and a 255 x 185 mm nominal opening. Review both mounting and project conversion.
4. How do I request a price for PFXST6500WADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
