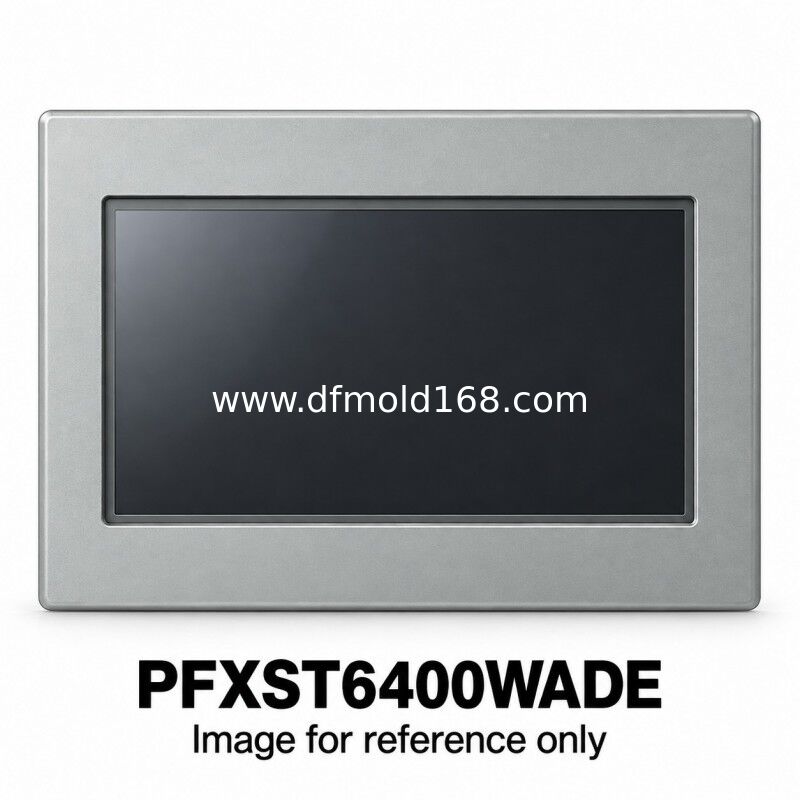

PFXST6400WADE 7 Inch GP-Pro EX HMI 800x480 24VDC

Parameters

Product Description

PFXST6400WADE combines a 7-inch, 800 x 480 TFT screen with GP-Pro EX support and a 24 V DC supply. It provides two Ethernet connectors, an RS-232C port and an RS-422/485 port for compatible controller connections. The panel uses a 190 x 135 mm nominal mounting opening. An older display with the same screen size may still differ in software, pin assignments and installation tolerances. For replacement work, retain the WADE suffix, review the original application and request label, connector and powered-screen photographs before confirming the offered unit.

Supply and Quotation

Request a quotation for PFXST6400WADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6400WADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 190 x 135 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6400WADE is the GP-Pro EX reference. PFXST6400WAD uses BLUE. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. Does a matching 7-inch screen establish replacement compatibility?
   No. Verify the 190 x 135 mm nominal opening and its tolerances, then check software, controller drivers and cable assignments. The panel has two Ethernet connectors, which should be configured according to the application rather than assumed to act as an unmanaged switch.
4. How do I request a price for PFXST6400WADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
