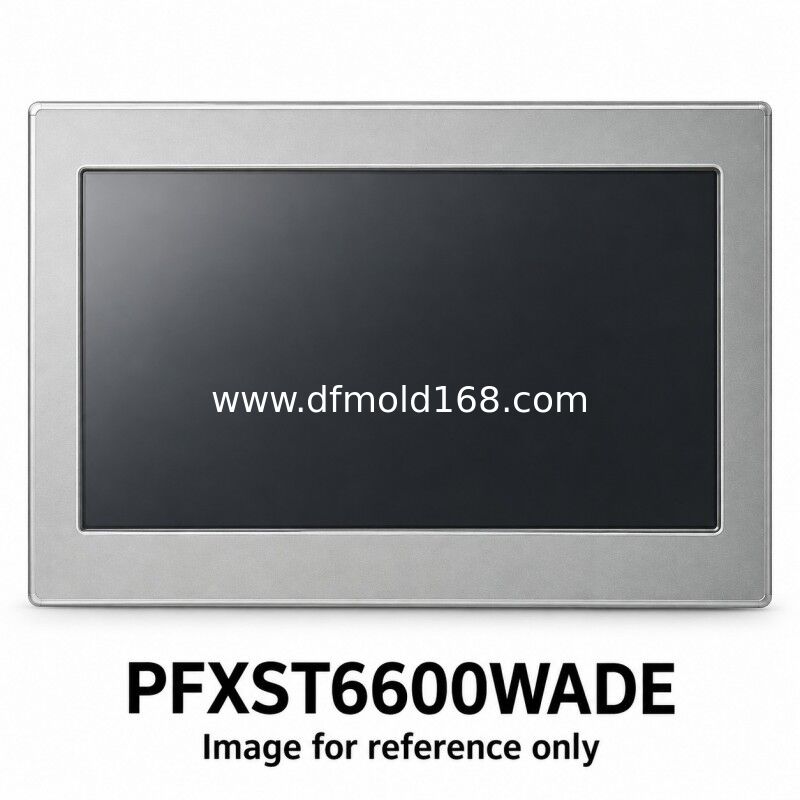

PFXST6600WADE 12.1 Inch GP-Pro EX HMI 1280x800 24VDC

Parameters

Product Description

PFXST6600WADE is a 12.1-inch widescreen touch panel with 1280 x 800 resolution and GP-Pro EX project support. Its 24 V DC hardware includes two Ethernet connectors, separate RS-232C and RS-422/485 serial ports, a USB Type-A host port and a USB micro-B device port. The wide display geometry matters when adapting an existing operator interface: a 12.1-inch panel with a different aspect ratio can require different screen layouts and mounting work. Check the 295 x 217 mm nominal opening, rear clearance and exact project target before ordering.

Supply and Quotation

Request a quotation for PFXST6600WADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6600WADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 295 x 217 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6600WADE is the GP-Pro EX reference. PFXST6600WAD uses BLUE. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. What should be compared with an older large-screen panel?
   Compare the 12.1-inch wide display, 1280 x 800 resolution and 295 x 217 mm nominal opening with the existing unit. Check the mounting tolerances and cabinet clearance separately. Review screen layout conversion even when the old panel has a similar diagonal size.
4. How do I request a price for PFXST6600WADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
