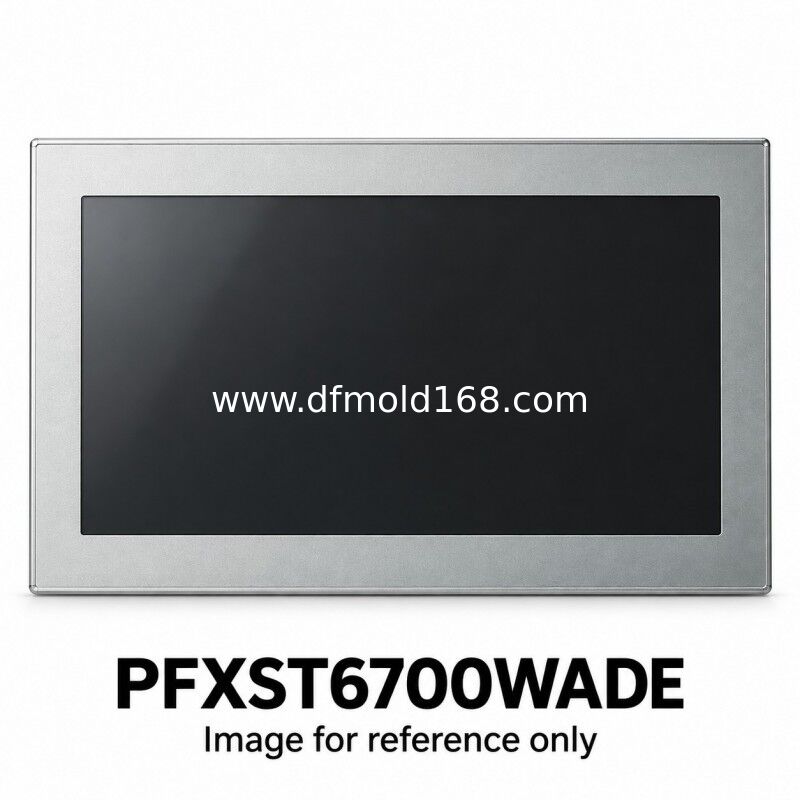

PFXST6700WADE 15.6 Inch GP-Pro EX HMI 1366x768 24VDC

Parameters

Product Description

PFXST6700WADE provides a 15.6-inch widescreen TFT display with 1366 x 768 pixels for a GP-Pro EX application. It operates from 24 V DC and provides two Ethernet connectors alongside separate RS-232C and RS-422/485 interfaces. The nominal panel opening is 394 x 250 mm, so a description of an existing unit as a 15-inch HMI is insufficient to establish a mechanical match. Compare the complete reference, software project, mounting drawing and cabinet clearance. Confirm the touch condition, display image and required accessories for the specific unit being quoted.

Supply and Quotation

Request a quotation for PFXST6700WADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6700WADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 394 x 250 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6700WADE is the GP-Pro EX reference. PFXST6700WAD uses BLUE. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. What should be compared with an older large-screen panel?
   Compare the 15.6-inch wide display, 1366 x 768 resolution and 394 x 250 mm nominal opening with the existing unit. Check the mounting tolerances and cabinet clearance separately. Review screen layout conversion even when the old panel has a similar diagonal size.
4. How do I request a price for PFXST6700WADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
