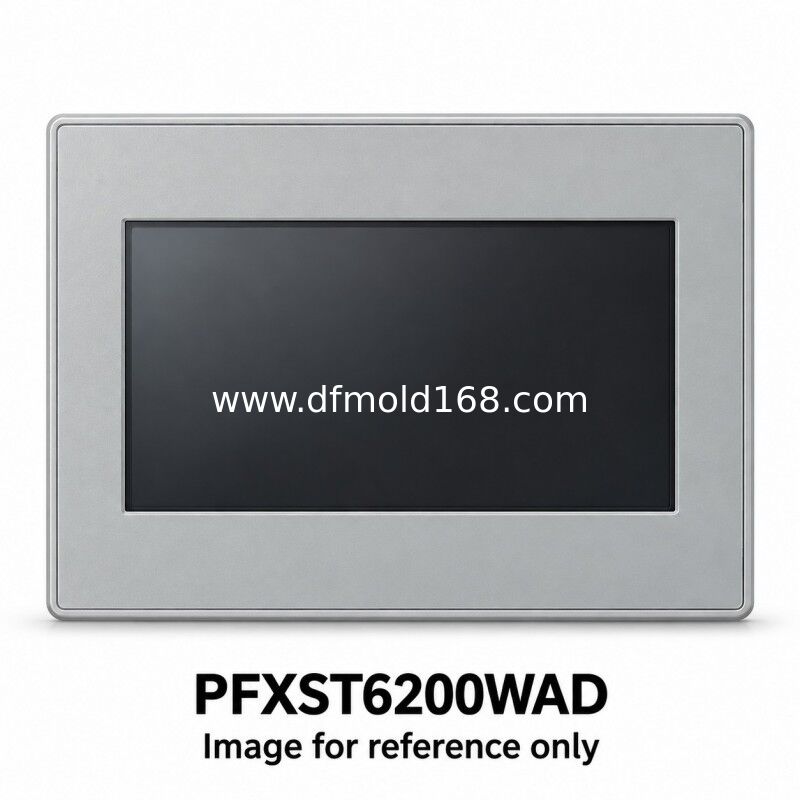

PFXST6200WAD 4.3 Inch BLUE HMI 480x272 24VDC

Parameters

Product Description

PFXST6200WAD is a compact 4.3-inch TFT HMI designed for BLUE projects, with 480 x 272 resolution and 24 V DC power. Its single COM1 connector supports selectable RS-232C or RS-422/485 communication; it does not provide separate serial ports for those modes. One Ethernet connector and USB Type-A and micro-B ports are also fitted. The 118.5 x 92.5 mm nominal opening should be checked against the cabinet. Preserve the WAD suffix and verify the BLUE project, selected serial mode and original cable pinout when sourcing a replacement.

Supply and Quotation

Request a quotation for PFXST6200WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6200WAD to a supported BLUE version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 118.5 x 92.5 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6200WAD is the BLUE reference. PFXST6200WADE uses GP-Pro EX. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   No. This compact model has one COM1 port with software-selectable RS-232C or RS-422/485 operation and no COM2. It also has one Ethernet connector. Confirm the required serial mode and cable pinout before ordering.
3. Will an existing 4.3-inch panel opening necessarily fit?
   No. This model uses a 118.5 x 92.5 mm nominal opening. Other 4.3-inch references can use different cutouts. Compare the installation drawing, panel thickness, mounting fasteners and rear clearance before deciding whether an adapter is needed.
4. How do I request a price for PFXST6200WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
