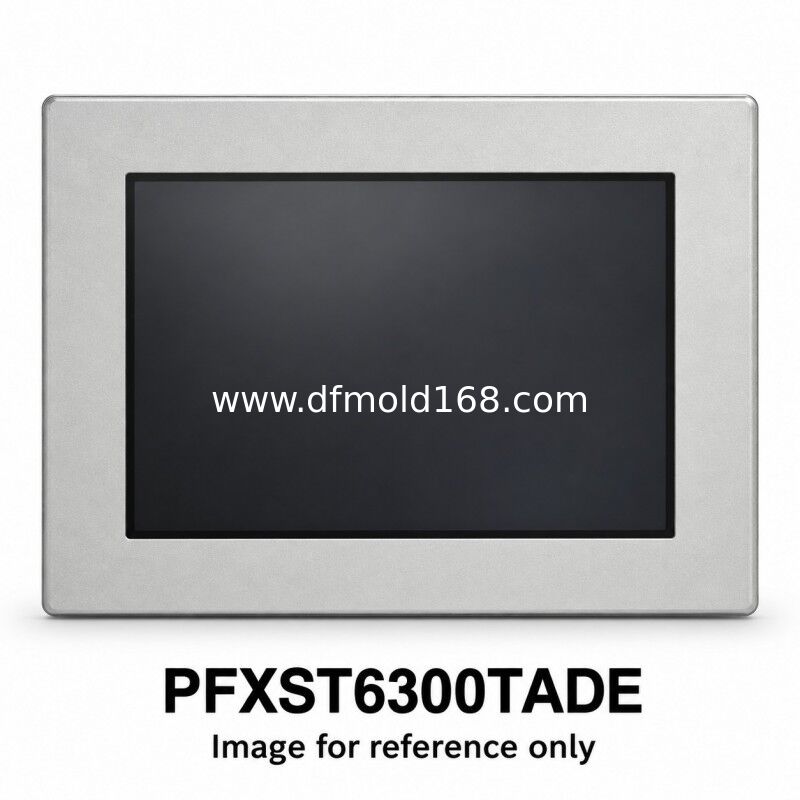

PFXST6300TADE 5.7 Inch GP-Pro EX HMI 640x480 24VDC

Parameters

Product Description

PFXST6300TADE uses a 5.7-inch TFT display with a 4:3 layout and 640 x 480 resolution. This GP-Pro EX reference operates from 24 V DC and includes one Ethernet connector, an RS-232C port and an RS-422/485 port. USB Type-A and micro-B interfaces support the appropriate peripheral and transfer functions. Its VGA resolution distinguishes it from many older 5.7-inch panels with 320 x 240 pixels. Review screen conversion and driver settings, check the 156 x 123.5 mm nominal opening, and confirm project access and mounting parts before supply.

Supply and Quotation

Request a quotation for PFXST6300TADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6300TADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 156 x 123.5 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Is this the same display format as a wide-screen model?
   No. This reference has a 5.7-inch 4:3 display with 640 x 480 pixels and a 156 x 123.5 mm nominal opening. Check the installation drawing and application layout before considering a wide-screen alternative.
2. How many Ethernet and serial connections are fitted?
   There is one Ethernet RJ45 connector, one RS-232C port on COM1 and one RS-422/485 port on COM2. Both serial connectors are male nine-pin D-Sub types. Match the driver and full pinout before reusing a cable.
3. Is an SD card interface available?
   No. This model has USB Type-A and micro-B interfaces but no SD card slot. Confirm the supported transfer or storage method in the project. Its 640 x 480 screen also requires review when migrating a 320 x 240 application.
4. How do I request a price for PFXST6300TADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
