PFXST6600WAD 12.1 Inch BLUE HMI 1280x800 24VDC

Parameters

Product Description

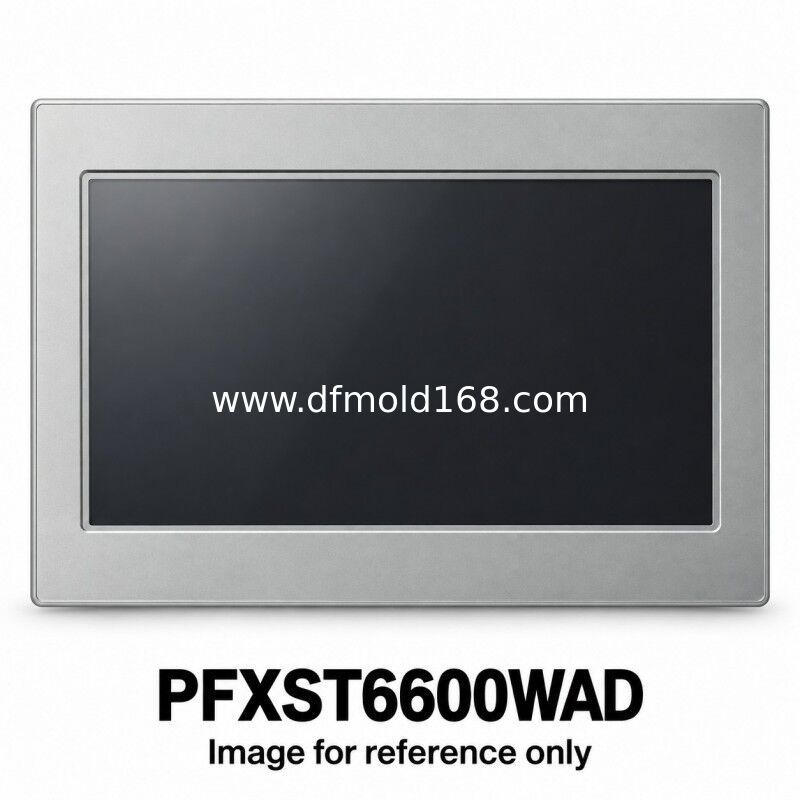

PFXST6600WAD is a 12.1-inch BLUE HMI with a 1280 x 800 widescreen TFT display and analog resistive touch input. The panel runs from 24 V DC and has two Ethernet connectors, dedicated RS-232C and RS-422/485 ports, plus USB Type-A and micro-B interfaces. When matching an installed unit, check that the application is a supported BLUE project and preserve the WAD suffix. Review screen geometry and the 295 x 217 mm nominal panel opening; neither the display diagonal nor a matching network connector alone establishes replacement compatibility.

Supply and Quotation

Request a quotation for PFXST6600WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6600WAD to a supported BLUE version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 295 x 217 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6600WAD is the BLUE reference. PFXST6600WADE uses GP-Pro EX. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. What should be compared with an older large-screen panel?
   Compare the 12.1-inch wide display, 1280 x 800 resolution and 295 x 217 mm nominal opening with the existing unit. Check the mounting tolerances and cabinet clearance separately. Review screen layout conversion even when the old panel has a similar diagonal size.
4. How do I request a price for PFXST6600WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
