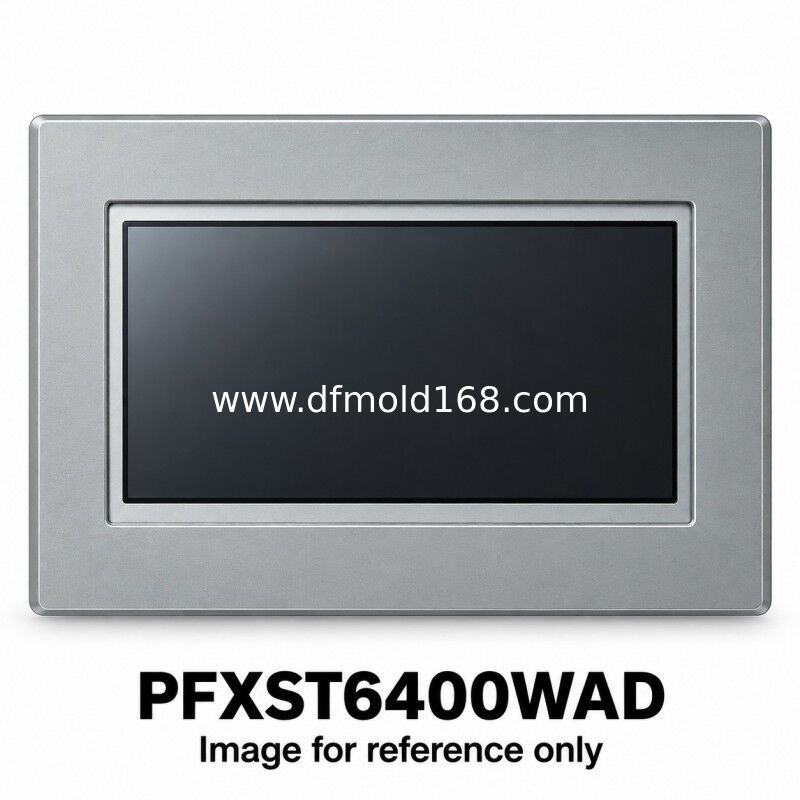

PFXST6400WAD 7 Inch BLUE HMI 800x480 24VDC

Parameters

Product Description

PFXST6400WAD is a 7-inch BLUE HMI with 800 x 480 resolution and a 24 V DC supply. Two Ethernet connectors and separate RS-232C and RS-422/485 ports provide the physical connections for a compatible application. USB Type-A and micro-B ports are fitted, while the panel mounts in a 190 x 135 mm nominal opening. Its dimensions can resemble those of other 7-inch panels, but the project environment and driver configuration still need checking. Retain the WAD suffix, verify the BLUE source project and agree the included connectors and mounting parts.

Supply and Quotation

Request a quotation for PFXST6400WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6400WAD to a supported BLUE version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 190 x 135 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Does the final E change the required project software?
   Yes. PFXST6400WAD is the BLUE reference. PFXST6400WADE uses GP-Pro EX. Keep the complete suffix and verify the original project environment; matching connectors do not make the software targets interchangeable.
2. Are all serial modes available as separate ports?
   COM1 is RS-232C and COM2 is RS-422/485, each on a male nine-pin D-Sub connector. There are also two Ethernet connectors. Match the selected controller drivers, serial pinouts and network settings to the machine project.
3. Does a matching 7-inch screen establish replacement compatibility?
   No. Verify the 190 x 135 mm nominal opening and its tolerances, then check software, controller drivers and cable assignments. The panel has two Ethernet connectors, which should be configured according to the application rather than assumed to act as an unmanaged switch.
4. How do I request a price for PFXST6400WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
