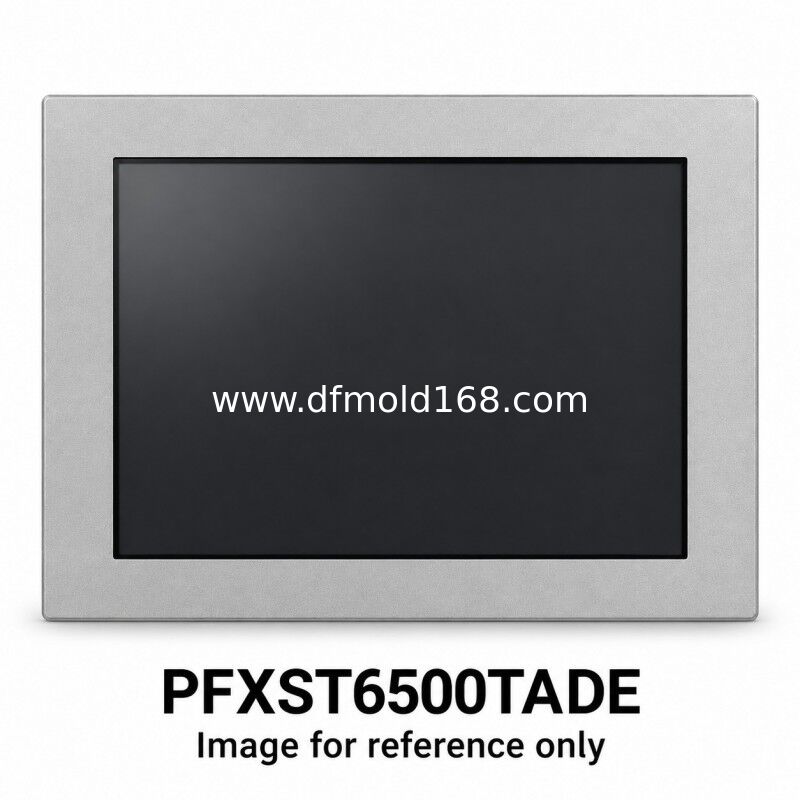

PFXST6500TADE 10.4 Inch GP-Pro EX HMI 800x600 24VDC

Parameters

Product Description

PFXST6500TADE is a 10.4-inch TFT HMI with a 4:3 display, 800 x 600 resolution and GP-Pro EX support. It runs from 24 V DC and provides one Ethernet connector, separate RS-232C and RS-422/485 serial ports, USB Type-A and micro-B ports, and an SD card interface. These features distinguish it from the 10.1-inch wide version, which has different display geometry and Ethernet provision. Check the 301.5 x 227.5 mm nominal opening, original application and any SD-card requirements. Storage media, project files and software licenses need separate confirmation.

Supply and Quotation

Request a quotation for PFXST6500TADE with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Match PFXST6500TADE to a supported GP-Pro EX version and the original project target. Confirm the controller driver, serial wiring and Ethernet configuration. Check the 301.5 x 227.5 mm nominal opening against the installation drawing, including tolerances, panel thickness and rear clearance. Retain all suffixes on the offered unit; coated or certification variants require separate identification.

FAQ

1. Is this the same display format as a wide-screen model?
   No. This reference has a 10.4-inch 4:3 display with 800 x 600 pixels and a 301.5 x 227.5 mm nominal opening. Check the installation drawing and application layout before considering a wide-screen alternative.
2. How many Ethernet and serial connections are fitted?
   There is one Ethernet RJ45 connector, one RS-232C port on COM1 and one RS-422/485 port on COM2. Both serial connectors are male nine-pin D-Sub types. Match the driver and full pinout before reusing a cable.
3. Is an SD card interface available?
   Yes. The unit has an SD interface supporting cards up to 32 GB. Confirm card compatibility and whether media are included; a card slot does not establish that the original application or stored production data will be supplied.
4. How do I request a price for PFXST6500TADE?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
