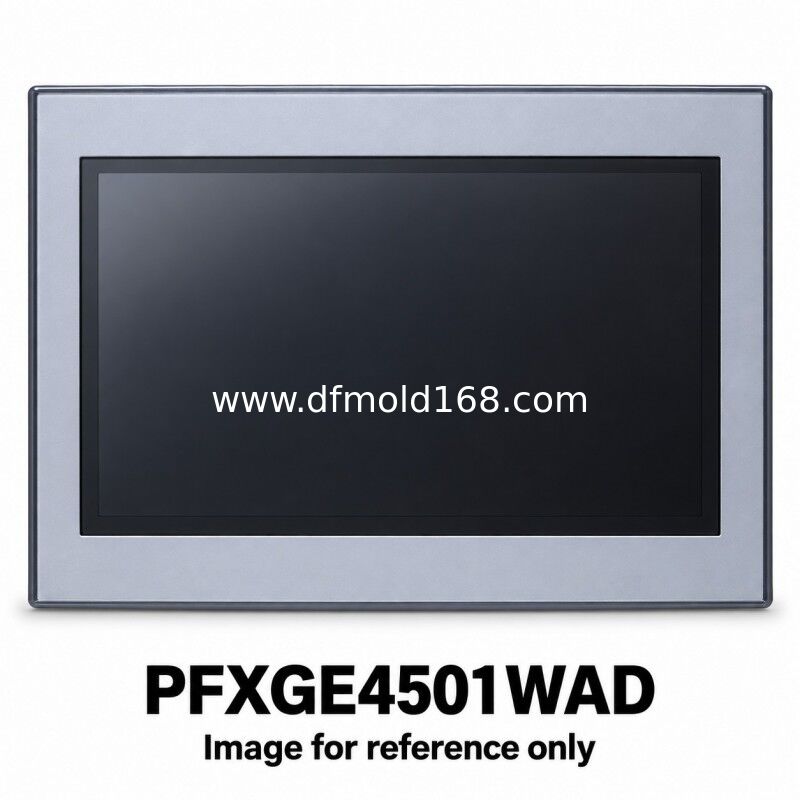

PFXGE4501WAD 10.1 Inch Serial HMI 800x480 24VDC

Parameters

Product Description

PFXGE4501WAD is a 10.1-inch widescreen TFT HMI with 800 x 480 resolution, 65,536 colors and analog resistive touch input. It operates from 24 V DC and provides separate RS-232C and RS-422/485 serial connections, plus USB Type-A and Mini-B interfaces. This reference has no built-in Ethernet connector. Use it with a supported GP-Pro EX project after checking the controller driver and original cable pinout. For replacement enquiries, compare the 255 x 185 mm nominal opening and rear clearance, then confirm display condition, mounting parts and access to the machine application.

Supply and Quotation

Request a quotation for PFXGE4501WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Use a GP-Pro EX version that supports PFXGE4501WAD and the required controller driver. Check the original application, fonts and serial cable pinout. Verify the 255 x 185 mm nominal opening and its drawing tolerances. Confirm USB peripheral requirements and the separate serial connections; Ethernet is absent.

FAQ

1. Is Ethernet built into this model?
   No. Controller connections use RS-232C on COM1 or RS-422/485 on COM2. The USB connectors have different roles. Confirm the existing controller interface and supported GP-Pro EX driver before selecting a replacement.
2. How does this differ from the low-power PFXGE4408WAD?
   This reference provides a USB Type-A host port and separate serial ports. Its catalog power consumption is 11 W. PFXGE4408WAD has no Type-A port and allows one selected serial channel. Confirm which interfaces the machine actually uses.
3. Can the same diagonal screen size or cutout guarantee a direct replacement?
   No. Check the 10.1-inch 800 x 480 display, 255 x 185 mm nominal opening and exact installation tolerances. Review software target, fonts, controller driver and cable pinout as well as mechanical dimensions. A project conversion may be required for a different reference.
4. How do I request a price for PFXGE4501WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
