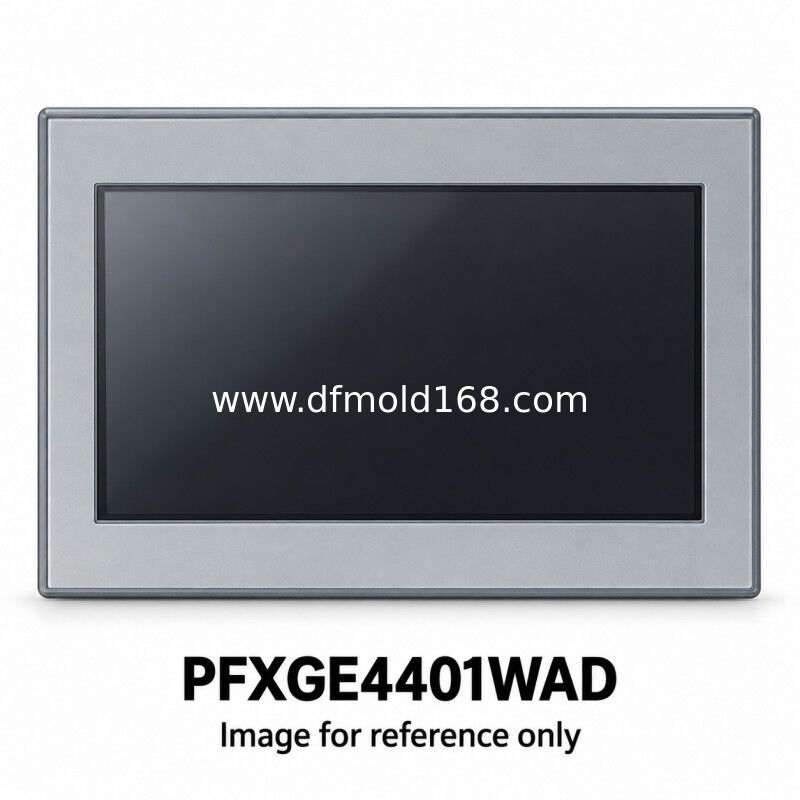

PFXGE4401WAD 7 Inch Serial HMI 800x480 24VDC

Parameters

Product Description

PFXGE4401WAD is a 7-inch, 800 x 480 TFT touch panel for serial controller applications. Its 24 V DC hardware includes RS-232C and RS-422/485 interfaces, a USB Type-A host port and a Mini-B port for project transfer. There is no built-in Ethernet connection. Unlike the low-power PFXGE4408WAD reference, this model retains the Type-A port and does not share its one-channel serial-use restriction. Match the original GP-Pro EX project, cable pinout and 190 x 135 mm nominal panel opening, and inspect the offered unit before confirming condition and accessories.

Supply and Quotation

Request a quotation for PFXGE4401WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Use a GP-Pro EX version that supports PFXGE4401WAD and the required controller driver. Check the original application, fonts and serial cable pinout. Verify the 190 x 135 mm nominal opening and its drawing tolerances. Confirm USB peripheral requirements and the separate serial connections; Ethernet is absent.

FAQ

1. Is Ethernet built into this model?
   No. Controller connections use RS-232C on COM1 or RS-422/485 on COM2. The USB connectors have different roles. Confirm the existing controller interface and supported GP-Pro EX driver before selecting a replacement.
2. How does this differ from the low-power PFXGE4408WAD?
   This reference provides a USB Type-A host port and separate serial ports. Its catalog power consumption is 8.2 W. PFXGE4408WAD has no Type-A port and allows one selected serial channel. Confirm which interfaces the machine actually uses.
3. Can the same diagonal screen size or cutout guarantee a direct replacement?
   No. Check the 7-inch 800 x 480 display, 190 x 135 mm nominal opening and exact installation tolerances. Review software target, fonts, controller driver and cable pinout as well as mechanical dimensions. A project conversion may be required for a different reference.
4. How do I request a price for PFXGE4401WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
