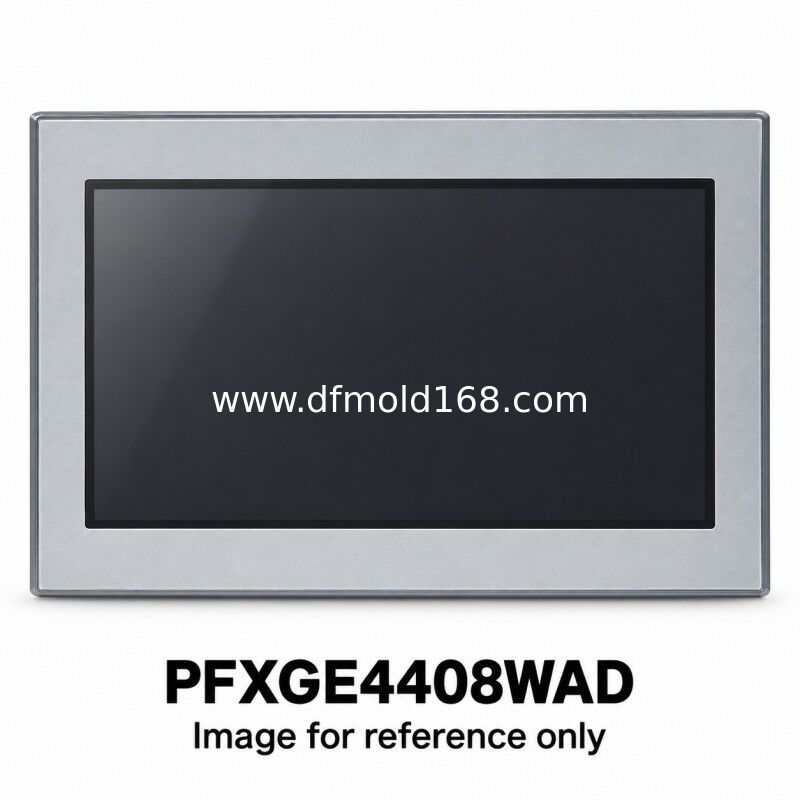

PFXGE4408WAD 7 Inch Low Power Serial HMI 800x480 24VDC

Parameters

Product Description

PFXGE4408WAD is a low-power 7-inch TFT HMI with 800 x 480 resolution and a 24 V DC supply. Its catalog power consumption is 5 W. Serial communication uses one selected channel, either COM1 for RS-232C or COM2 for RS-422/485. A USB Mini-B port supports project transfer; USB Type-A and Ethernet are not fitted. These interface limits must be considered when comparing it with PFXGE4401WAD. Confirm the supported GP-Pro EX project, chosen serial channel and 190 x 135 mm nominal opening, then agree the offered condition and required mounting accessories.

Supply and Quotation

Request a quotation for PFXGE4408WAD with quantity, destination and required arrival date. Send label and connector photographs when matching an installed unit. We will confirm the offered condition, current availability, included accessories, delivery terms and warranty in the quotation. Software licenses, original machine programs, transfer cables and optional mounting parts require separate confirmation.

Compatibility

Use a GP-Pro EX version that supports PFXGE4408WAD and the required controller driver. Check the original application, fonts and serial cable pinout. Verify the 190 x 135 mm nominal opening and its drawing tolerances. Confirm the selected serial channel and Mini-B transfer method; Type-A and Ethernet are absent.

FAQ

1. Can COM1 and COM2 be used together on this reference?
   The low-power reference is specified for one selected serial channel: COM1 for RS-232C or COM2 for RS-422/485. Confirm the required channel in the project. Do not apply the simultaneous-port assumptions of PFXGE4401WAD to this unit.
2. Can I use a USB flash drive through a Type-A port?
   No USB Type-A host port is fitted. The Mini-B connector is for project upload/download and serves a different purpose. Verify the required data-transfer method before choosing this low-power version.
3. Can an Ethernet PLC cable connect directly to this model?
   No. This panel has serial controller interfaces and no built-in Ethernet connector. Match the supported serial driver and wiring. Its 7-inch screen and 190 x 135 mm nominal opening do not establish interchangeability with an Ethernet HMI.
4. How do I request a price for PFXGE4408WAD?
   Send the complete reference, quantity, preferred condition and delivery destination. Include label photographs and any required arrival date. Price and availability are confirmed for the specific offered unit.
5. Will the machine program and software license be included?
   Confirm access to the original project, passwords and compatible engineering software before purchase. Hardware supply alone does not include the machine application or a software license. Agree any transfer or commissioning work separately.
6. What should be checked before shipment?
   Request matching label and connector photos, a powered-screen check, touch-response confirmation and an accessory list. Agree the inspection scope, packaging, dispatch timing and warranty in the quotation.
